RMSTATOR

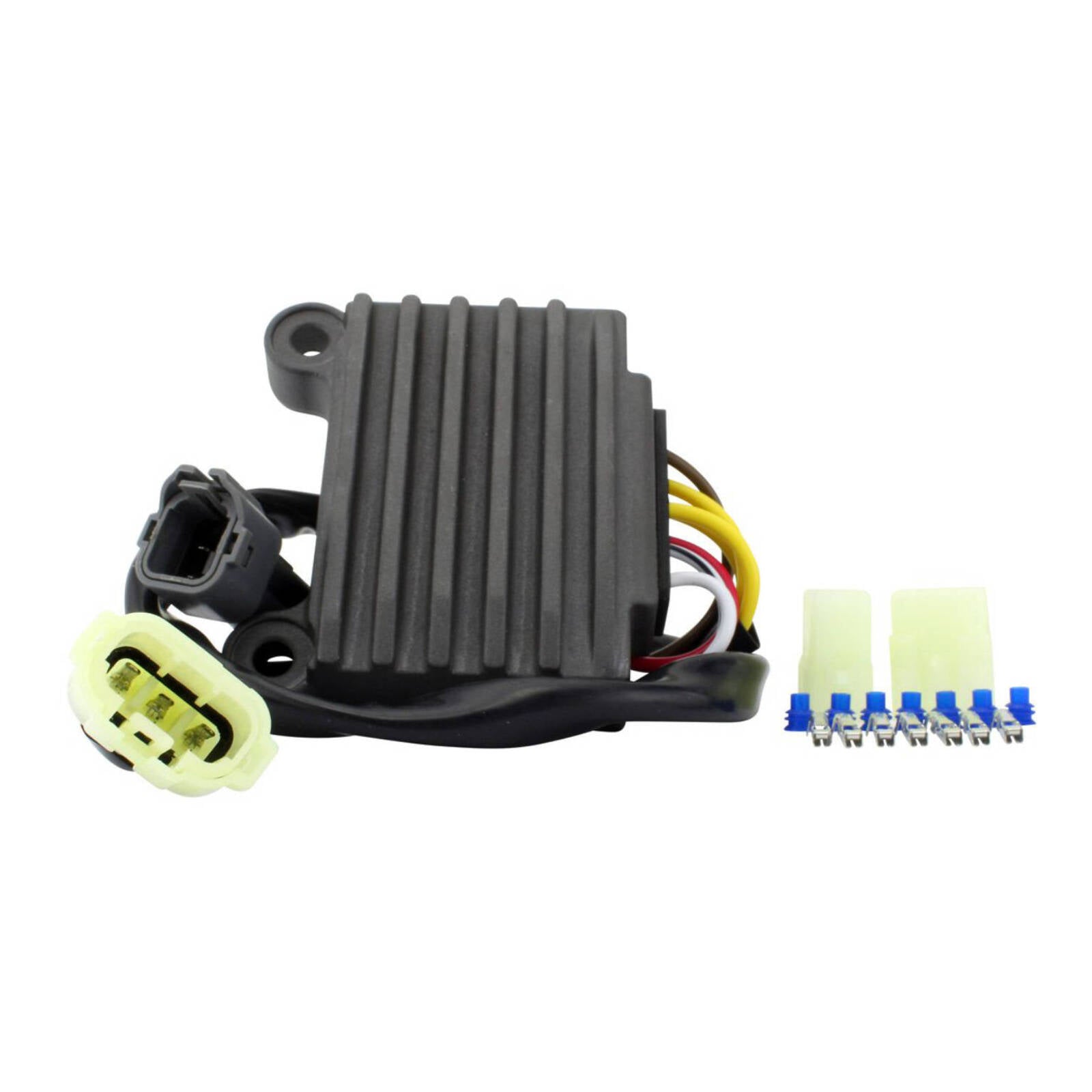

Voltage Regulator Assorted Models Refer to Fitment (RMS020-107290)
| In Store |
Not in Store
|
| NZ Warehouse |
Out of Stock
|
DESCRIPTION
Brand new aftermarket Voltage Regulator Rectifier.
- Direct replacement to the original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required.
- Higher grade of electric components.
- The quality exceeds the OEM equipment.
- All products shipped are tested.
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before installing the new Voltage Regulator Rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Width: 74 mm.
- Length: 80 mm.
- Height: 22 mm.
- Wires length #1: 220 mm.
- Wires length #2: 440 mm.
- Distance between fixation holes centre to centre: 68 mm.
Other specifications:
- Number of plugs: 2.
- Number of pins: 7.
- Number of wires: 7.
- Minimum Charging Voltage: 14.5 V +/- 0.5 V.
- Maximum Charging Current: 50 A / 500 W.
- Open Circuit Voltage: < 15 V.
- Operation Temperature: -20°C to 85°C.
