DESCRIPTION

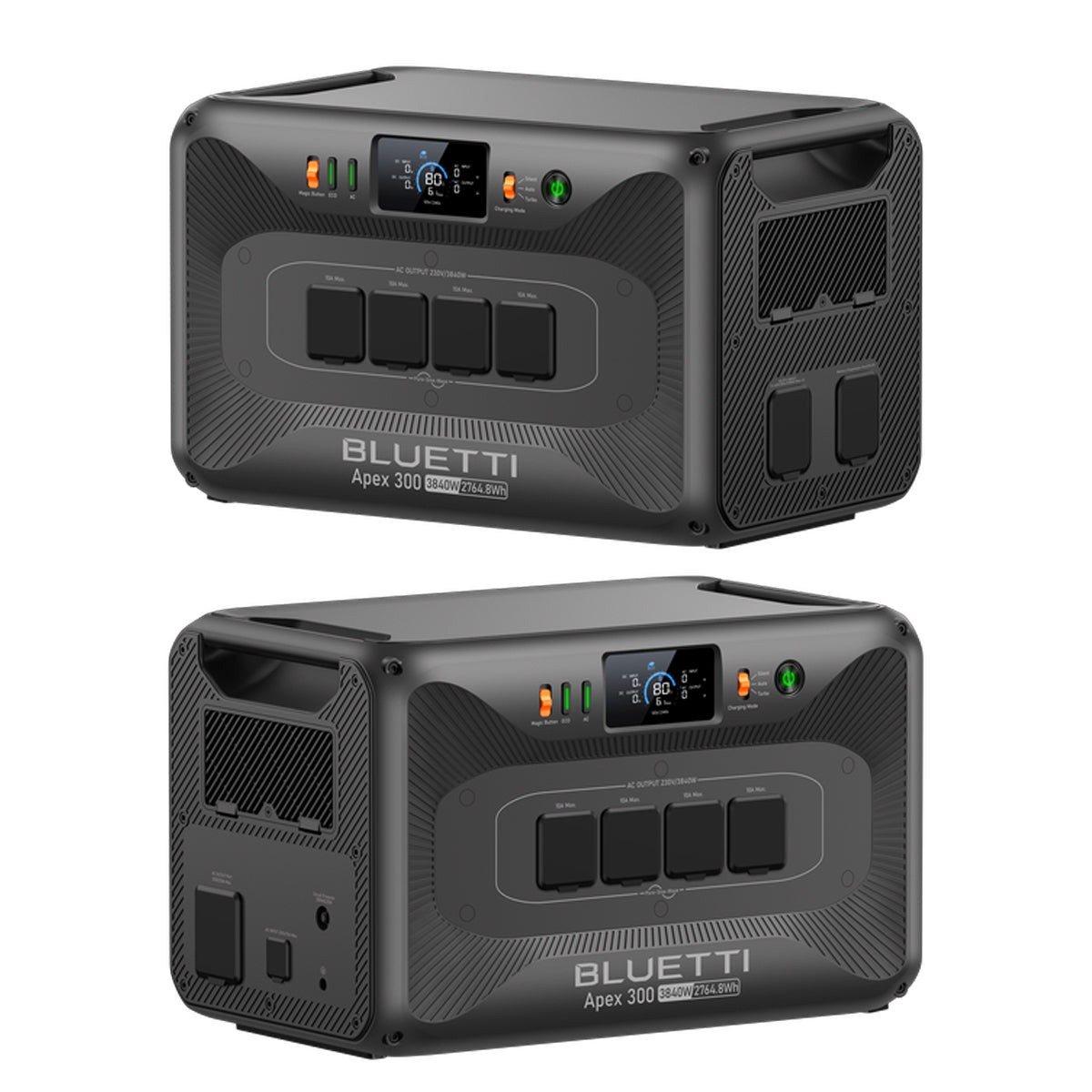

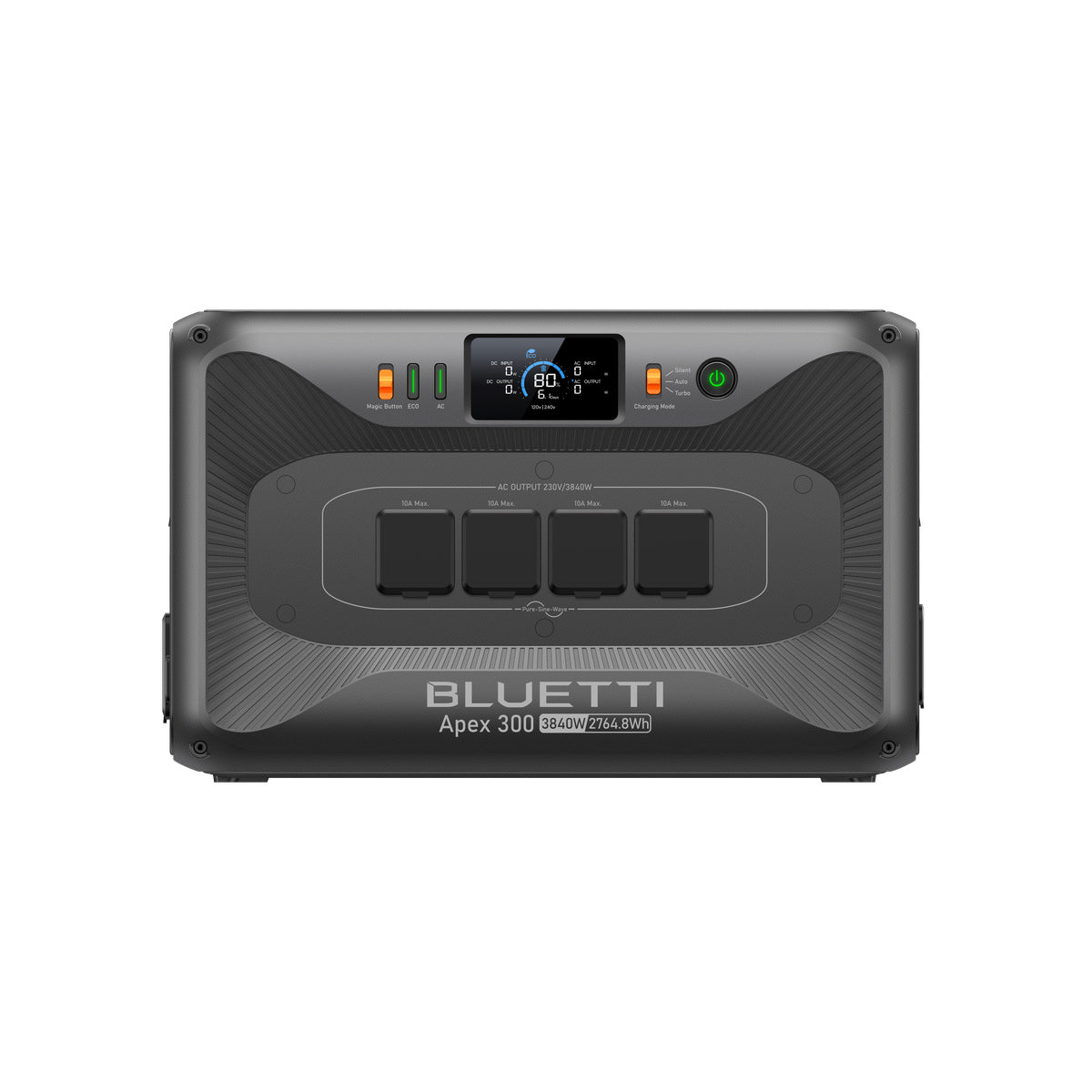

Apex 300 Expandable Power System
All-in-One Solution for Every Scenario
The Apex 300 expandable power system, with its cutting-edge technologies, will revolution your power experience. Offering up to 11.52kW of output and 58kWh of capacity, it supports parallel connection and dual 120V/240V voltage for your home, RV trips, off-grid lifestyle, and more!
Triple the Power, Triple the Capacity
Customized Solution | Space-Saving | Stable Performance
Expand up to 11.52kW output and 58kWh capacity by parallel connection with 3 units and up to 18 battery packs. You can sustain up to 7 days off-grid or power through extended outage effortlessly.

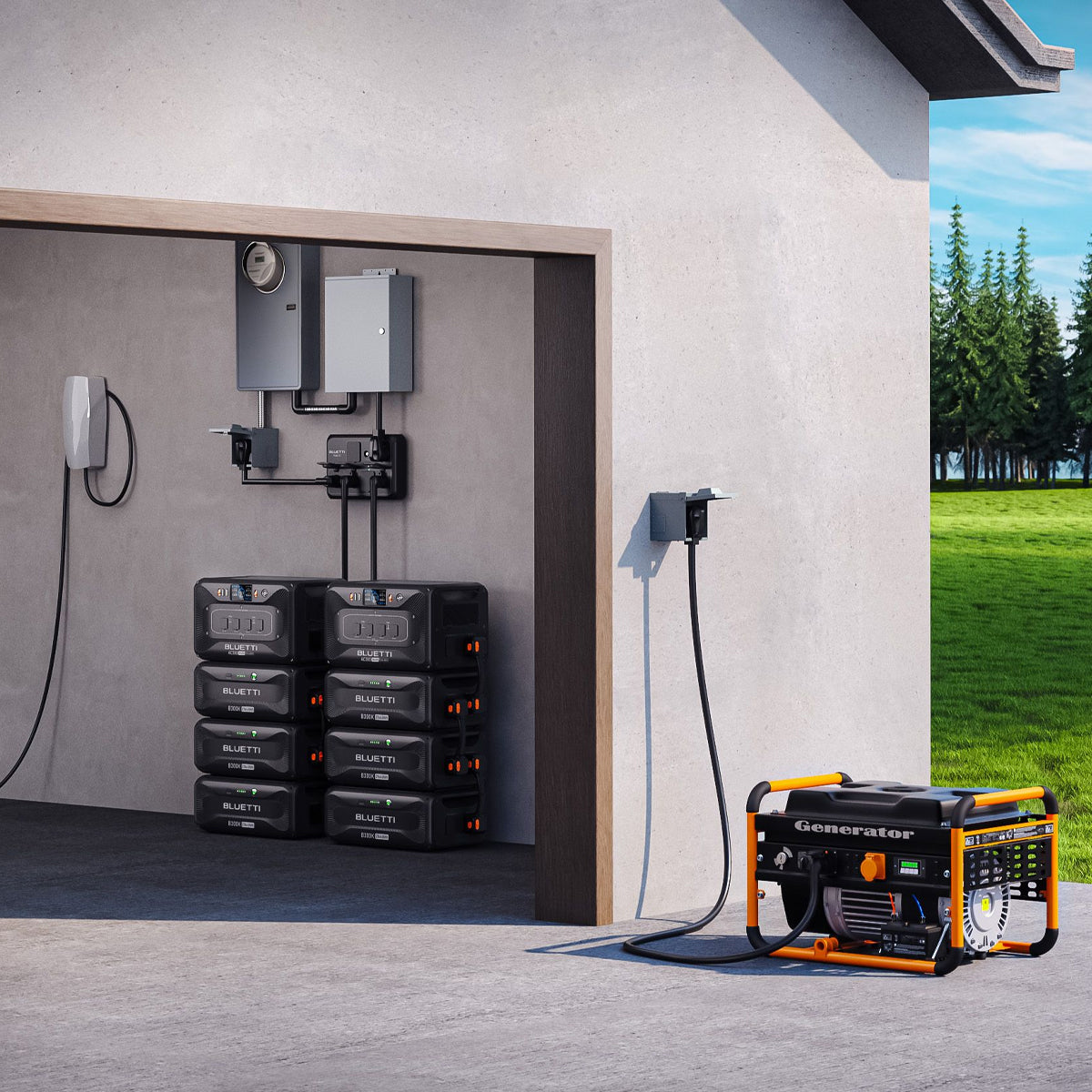

Dual 120V/240V Voltage for Whole-Home Use
Power Everything | Easy Installation
The Apex 300 delivers 120V and 240V dual volage, so you can use high-power devices liker dryers, central AC, EV chargers, water pumps and kitchen appliances without affecting other devices like refrigerators or ovens.
Hot-Swappable & Plug-and-Play
You can remove the Apex 300 or battery pack for outdoor use without shutting down the system, ensuring uninterrupted power supply to you home devices.

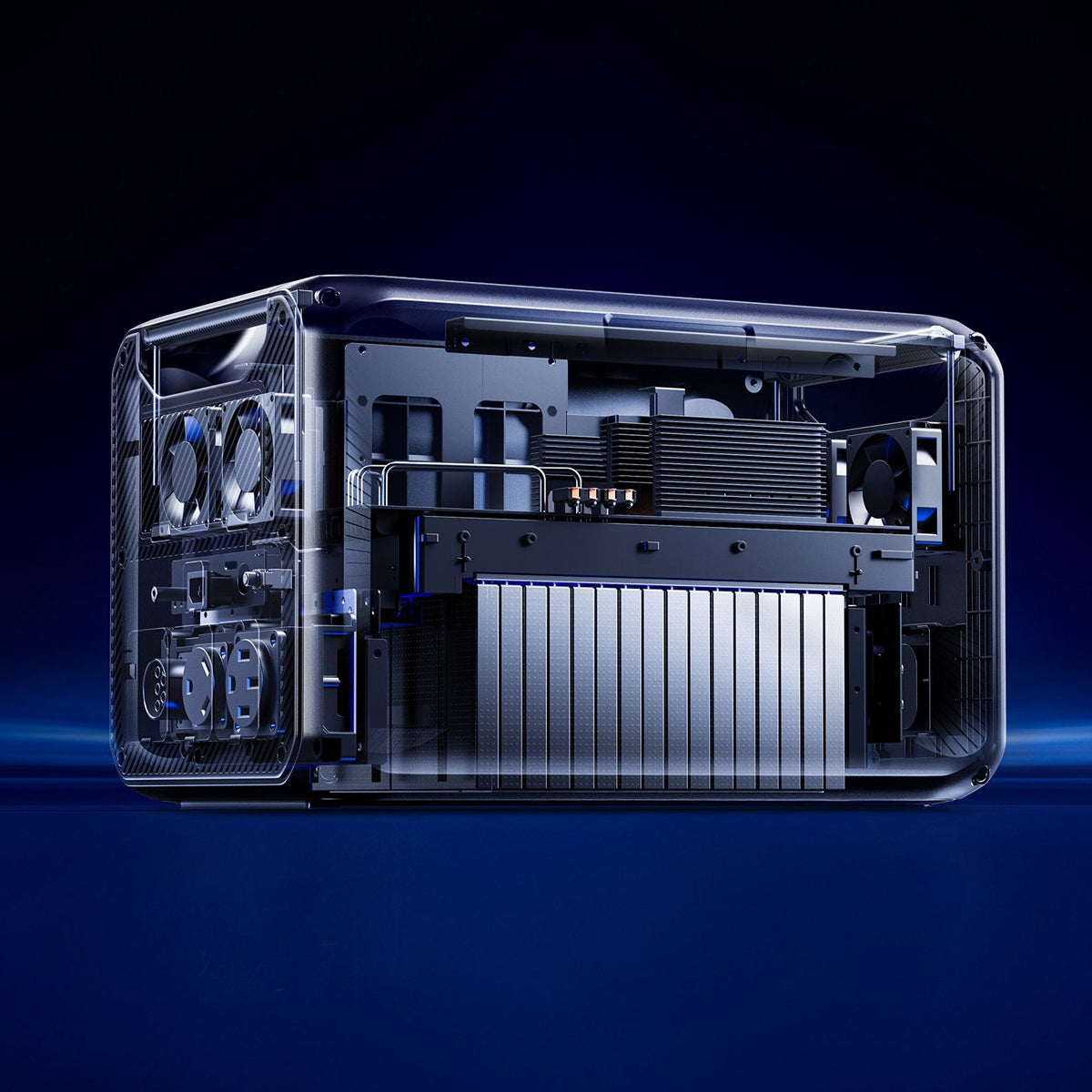

Compact Size & Industry-Leading Energy Density
Maximized Spaced Efficiency | Portable Compact
The Apex 300 features an all-new compact structure. The energy density is 40% higher than its peers, making it the most portable and parallel power solution in the industry.
Specifications
Battery Capacity: 2,764.8Wh (51.2V/54Ah)
Battery Type: LiFePO4
Weight: About 38kg (83.78lbs)
Dimensions (L × W × H) 525 × 327 × 320mm
(20.67 × 12.87 × 12.6in)
Charging Temperature 0°C to 40°C (32°F to 104°F)
Discharging Temperature -20°C to 40°C (-4°F to 104°F)
AC Output
AC socket ports: 3,840W Max. in total, 230V, 16.7A Max., 50/60Hz (AU: 15A Max. each port)
1 × 50A AC Input/Output (P050A): 3,840W Max., 230V, 16.7A Max., 50Hz / 60Hz
AC Input
10A AC Input (Standard): 2,300 Max., 230V, 50Hz / 60Hz, 10A Max.
50A AC Input/Output (P050A): 230V, 50A Max. (Charging + Bypass)
AC Charging (Requires Hub A1): 3,840W Max. (80% in 45 mins @15°C to 25°C / 59°F to 77°F)
DC Input (2 × XT60PM-M): 1,200W Max. per port, 12V-60V, 20A Max.
AC + DC Charging Apex 300: 3840W Max Apex 300+1~6 B300K: 6240W Max
Battery Expansion Port
Nominal Voltage: 51.2VDC, 90A Max.
Parallel Port
Interface: P050A
Output Current: 50A Max.
