RMSTATOR

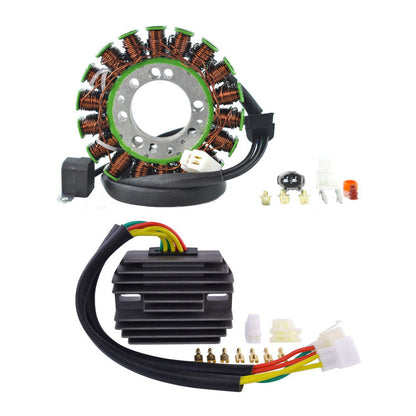

STATOR KIT + MOSFET REGULATOR (RMS900-106045)
| In Store |
Not in Store
|
| NZ Warehouse |
Out of Stock
|
DESCRIPTION
Brand new aftermarket stator and voltage regulator kit.
- Direct replacement for the original unit.
- Plug-and-play, direct fit and easy installation.
- All products are tested before shipping.
All item pictures are accurate. If in doubt, compare the item with the original part.

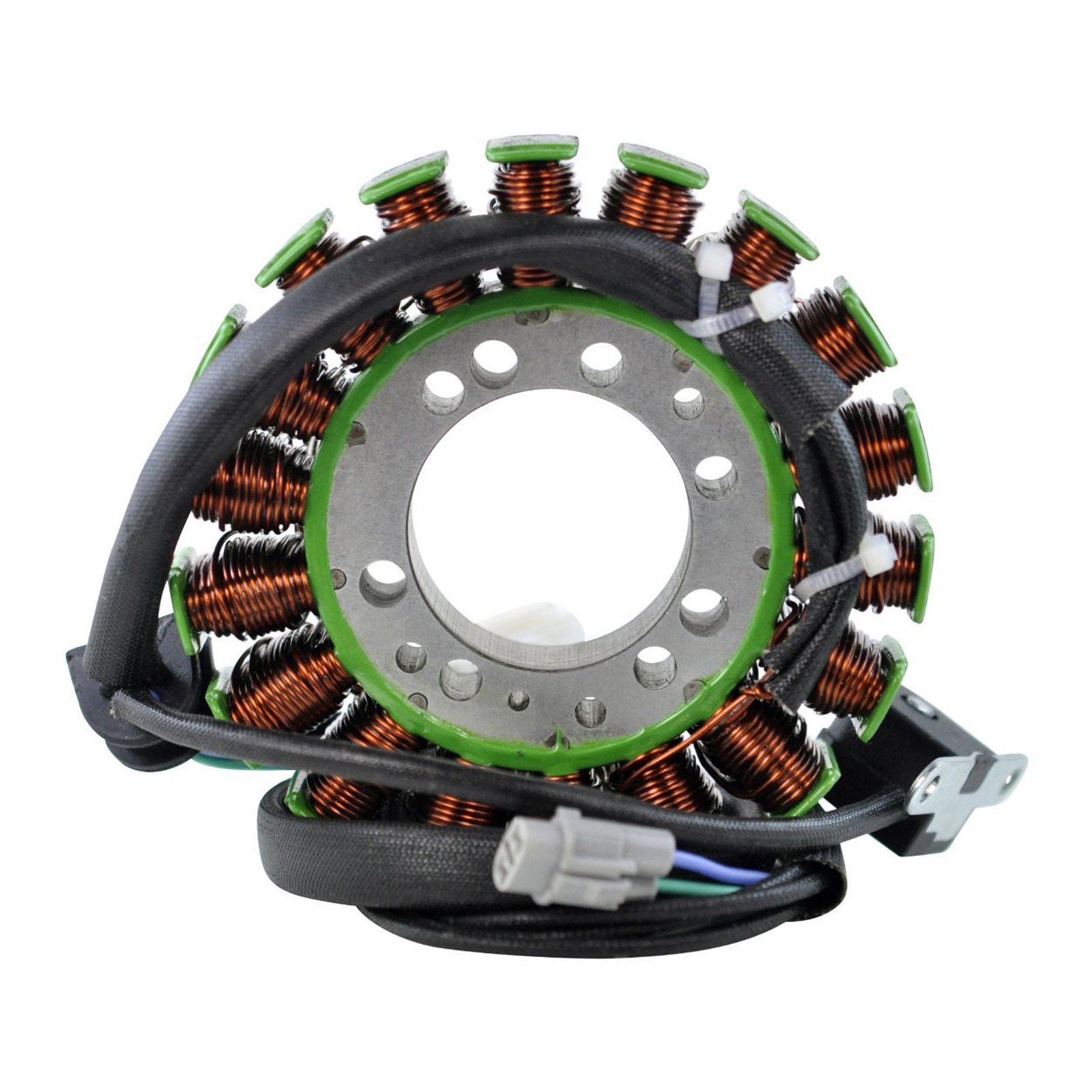

Stator Features:
- Made with high-grade lamination materials.
- High-grade copper winding, resistant to temperatures up to 200°C.

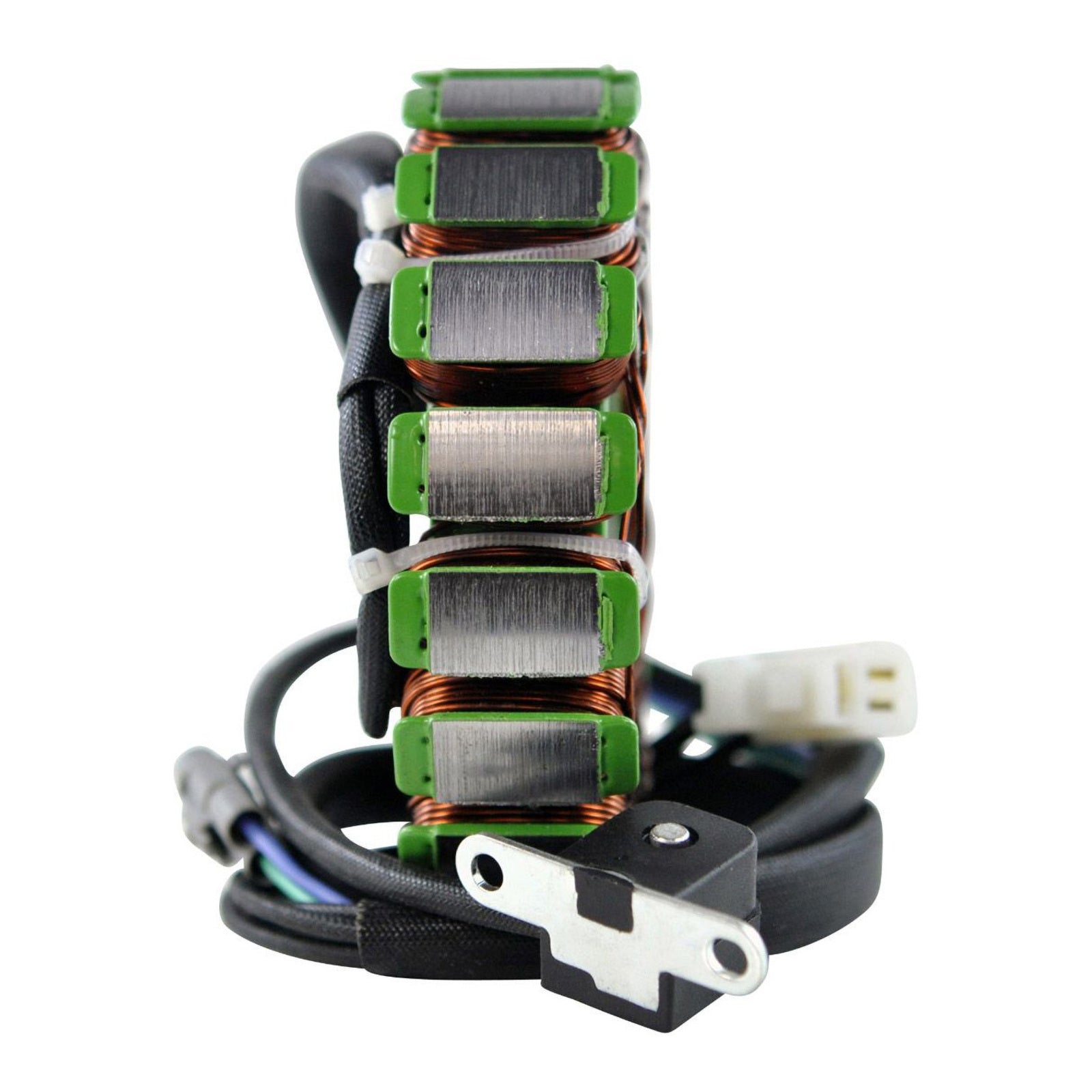

- Pickup/pulser coil included.
- Connectors included.
- Rubber grommet included.
An opposite connector for the main harness side is also included, as these connectors are often melted, corroded or defective and can be a major cause of recurring electrical issues.
Voltage Regulator Rectifier Features:
- No assembly required.
- Higher-grade electrical components.
- Quality exceeds OEM equipment.
Before Installing the New Stator:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator rectifier.
- Check and repair any melted wiring.
- Use high-temperature dielectric grease on all connectors.
The stator may use a different wire colour code from the original. All wires are installed in the correct order; do not change any wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. Always use locking compound when bolting the stator in place. If the stator includes a pickup coil, ensure the air gap is correct during installation. We recommend setting it as close as possible, but no less than 0.010 inches.
Before Installing the New Voltage Regulator Rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator rectifier.
- Check and repair any melted wiring.
- Use high-temperature dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Stator Dimensions:
- Interior diameter: 42 mm
- Exterior diameter: 115 mm
- Thickness: 22 mm
- Length of wires from stator to grommet: 120 mm
- Length of wires from grommet to plug: 530 mm
- Length of pickup coil wire to grommet: 150 mm
Stator Specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 18
Wire-to-Wire Resistance:
- Alternator 3P: Between each Black = 1 ohm ±20%
- Pickup: Green to Blue = 200 ohms ±20%
- Alternator to ground: O.L.
Voltage Regulator Dimensions:
- Width: 82 mm
- Length: 94 mm
- Height: 28 mm
- Wire length: 183 mm
- Fixing hole centres: 73 mm
Voltage Regulator Specifications:
- Number of plugs: 2
- Number of pins: 7
- Number of wires: 7
- Minimum charging voltage: 14.5 V ±0.5 V
- Maximum charging current: 50 A / 500 W
- Open-circuit voltage: <15 V
- Operating temperature: -20°C to 85°C
