RMSTATOR

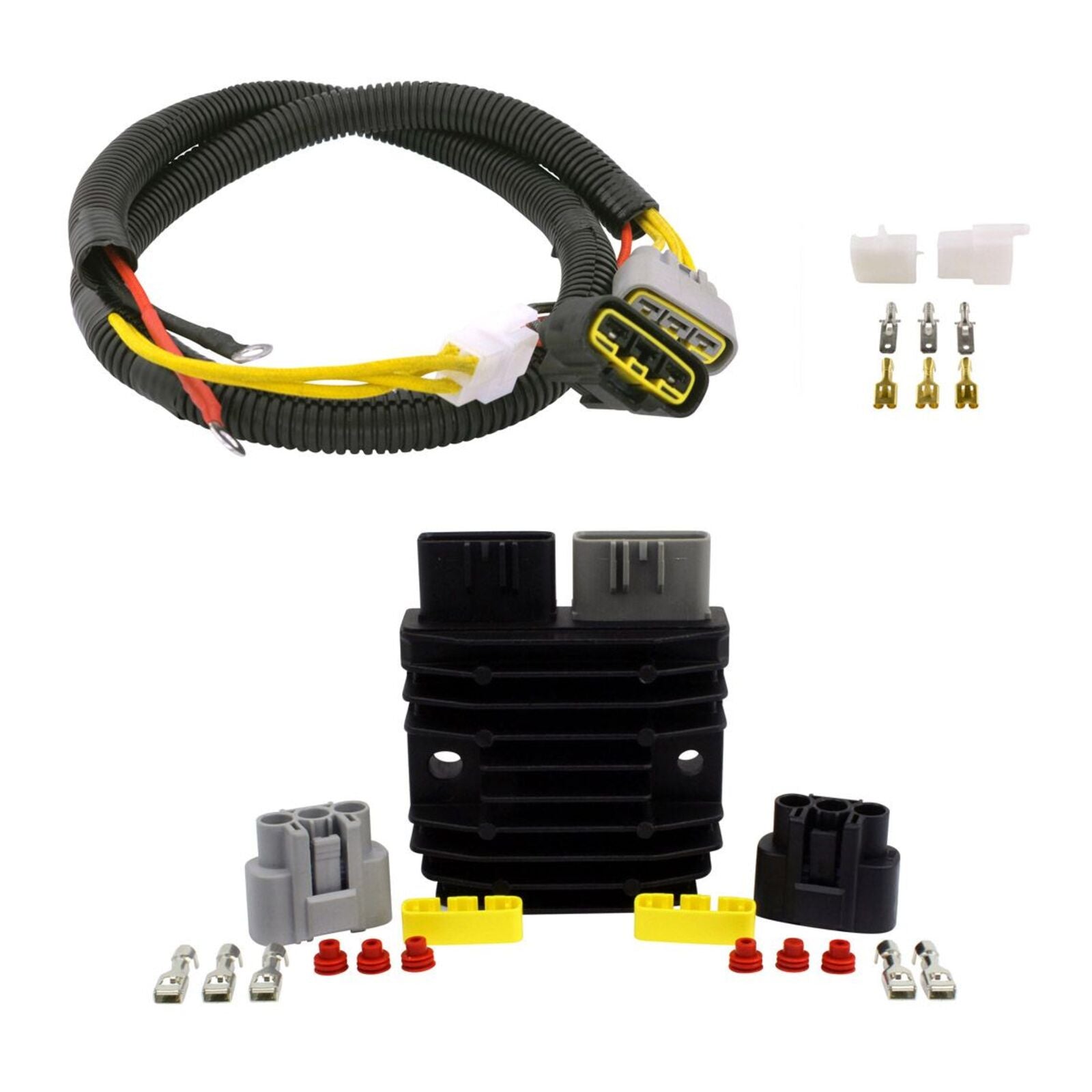

Bypass Series Regulator Rectifier Assorted BMW (RMS021-108592)
| In Store |
Not in Store
|
| NZ Warehouse |
Low Stock
|
DESCRIPTION
BENEFITS OF SERIES VOLTAGE REGULATORS
- SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifiers and way cooler than OEM parts.
- Power only flows through the electrical components when the battery is charging.
- Allows the stator to have lower current flowing when not used, extending its lifetime.
- The regulator is easier to mount because it is smaller than the OEM.
ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY
RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.
This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of the charging system components.

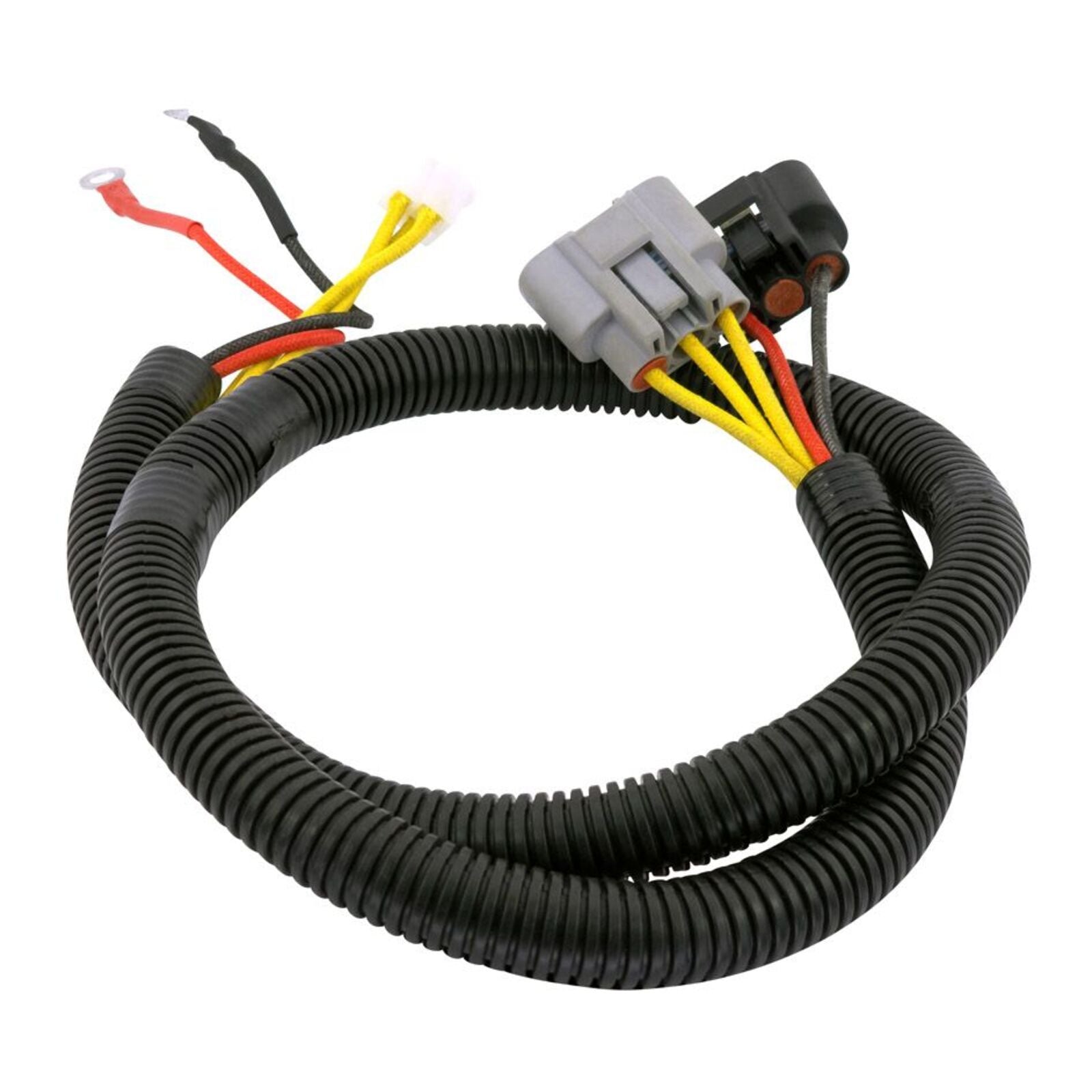

ABOUT THE BYPASS HARNESS
This bypass harness allows you to connect the new series regulator directly to the battery. Bypassing feet of wire and multiple connectors on the main wiring harness to provide a safer and more direct connection.
INSTALL LIKE A PRO

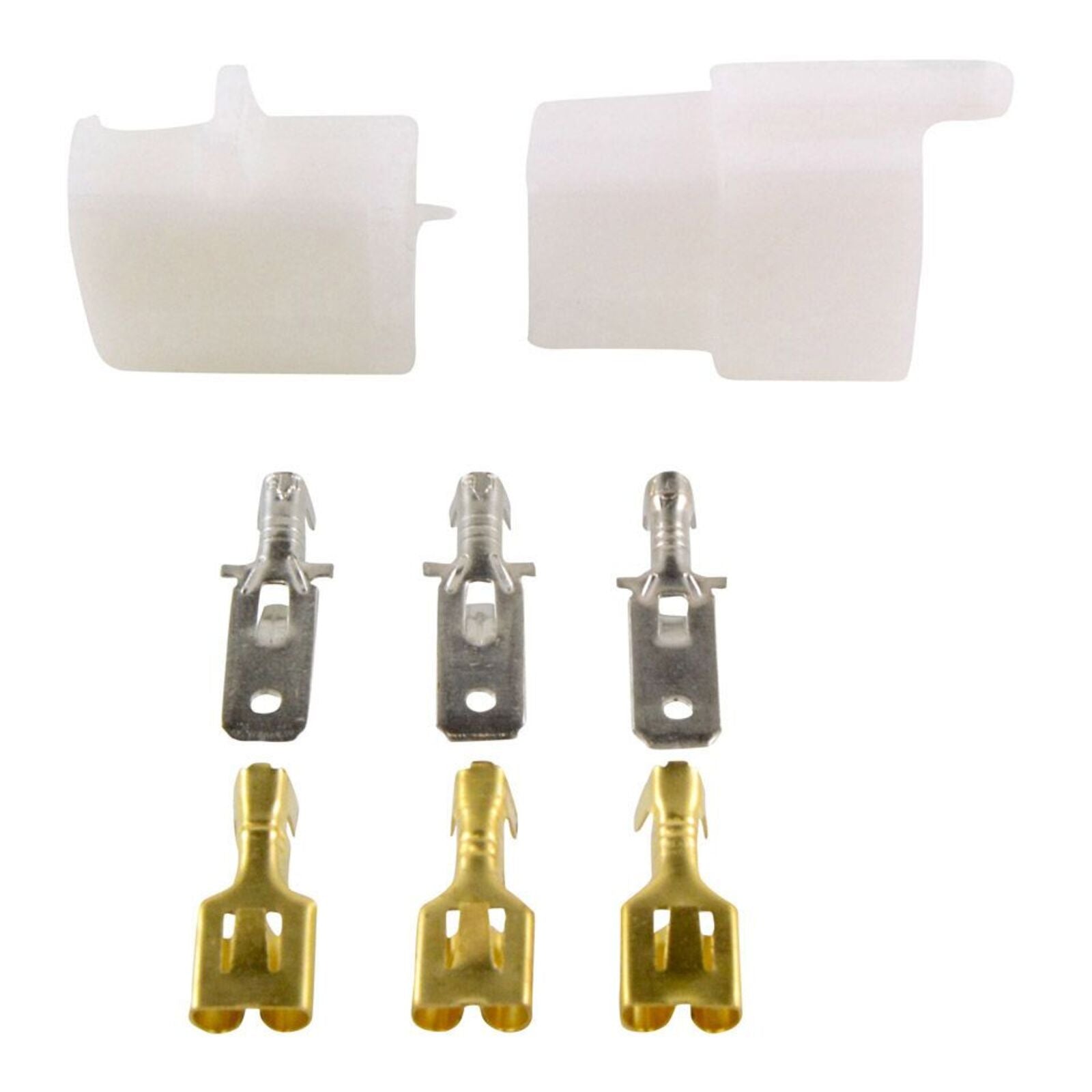

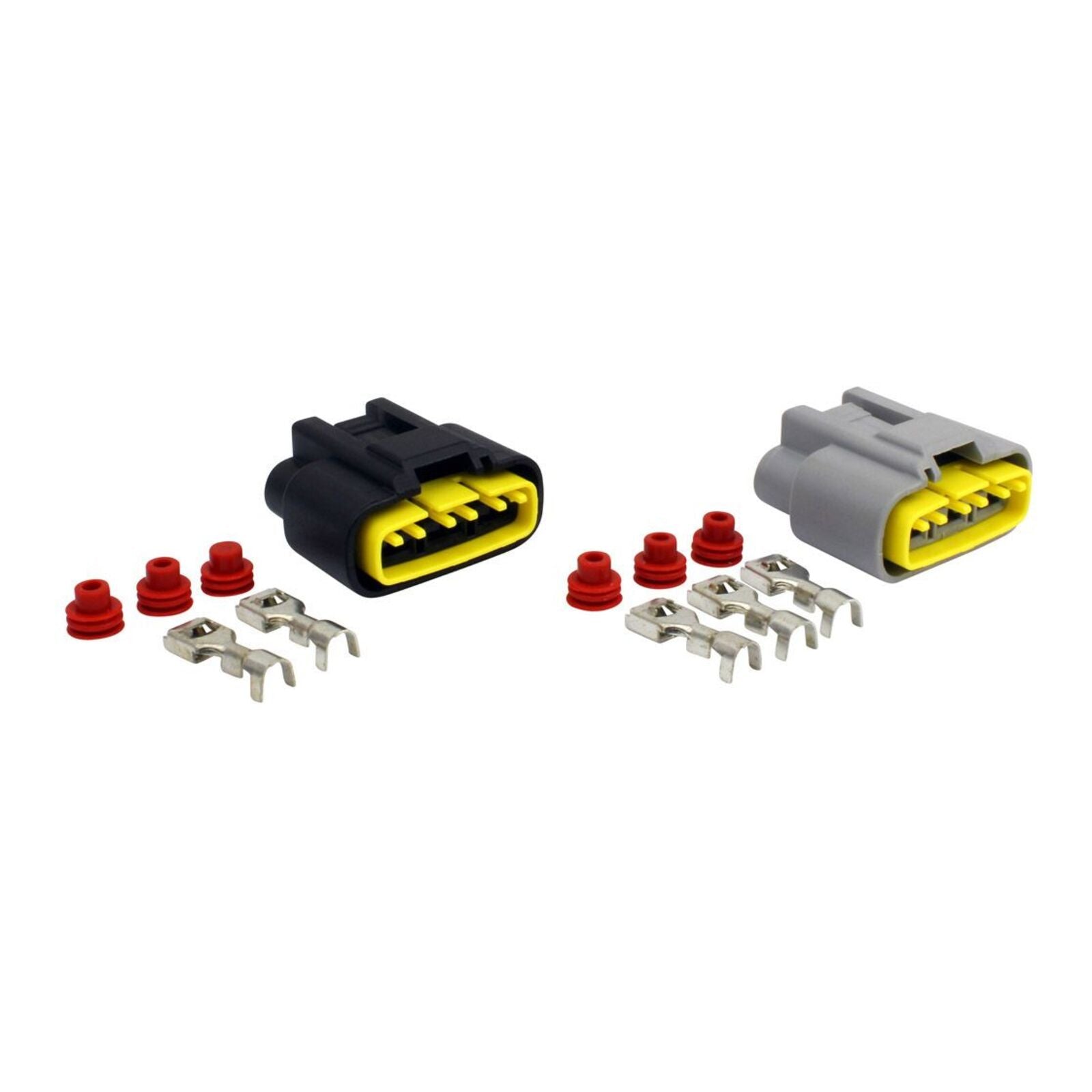

We include the opposite connector (main harness side) as we know these are often melted / corroded / defective. Defective connectors are a major cause for repetitive electrical issues.
Before installing the new SERIES Voltage Regulator Rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

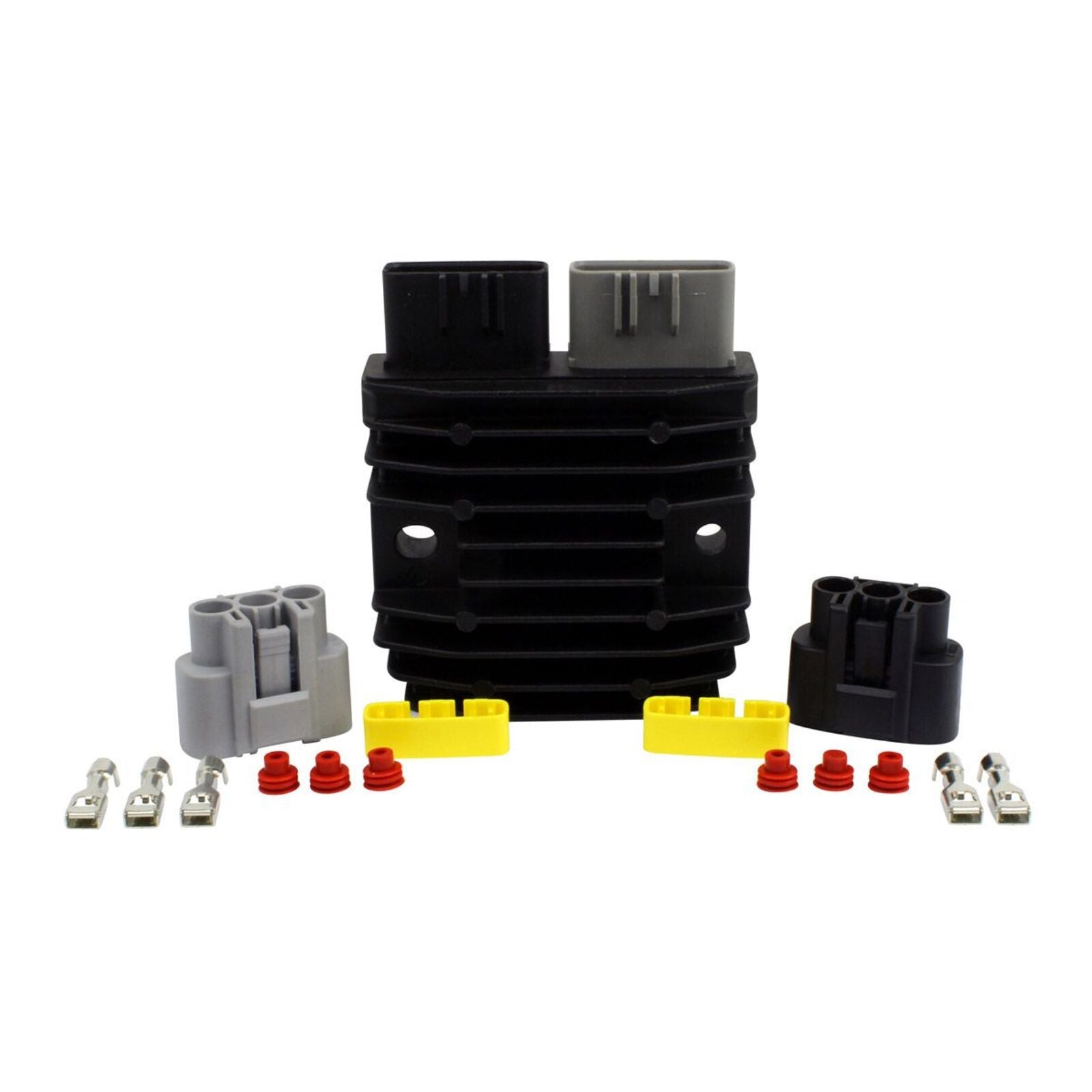

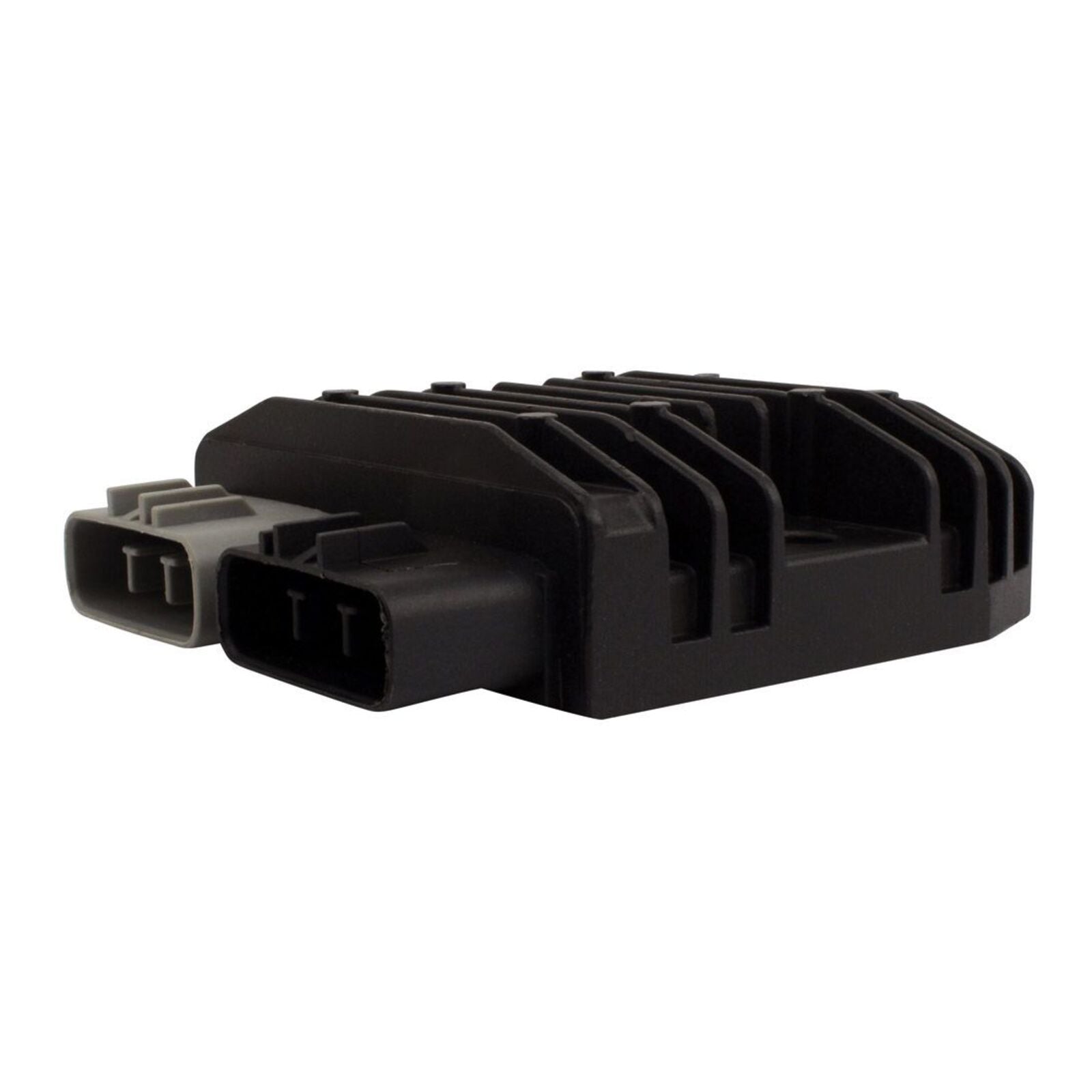

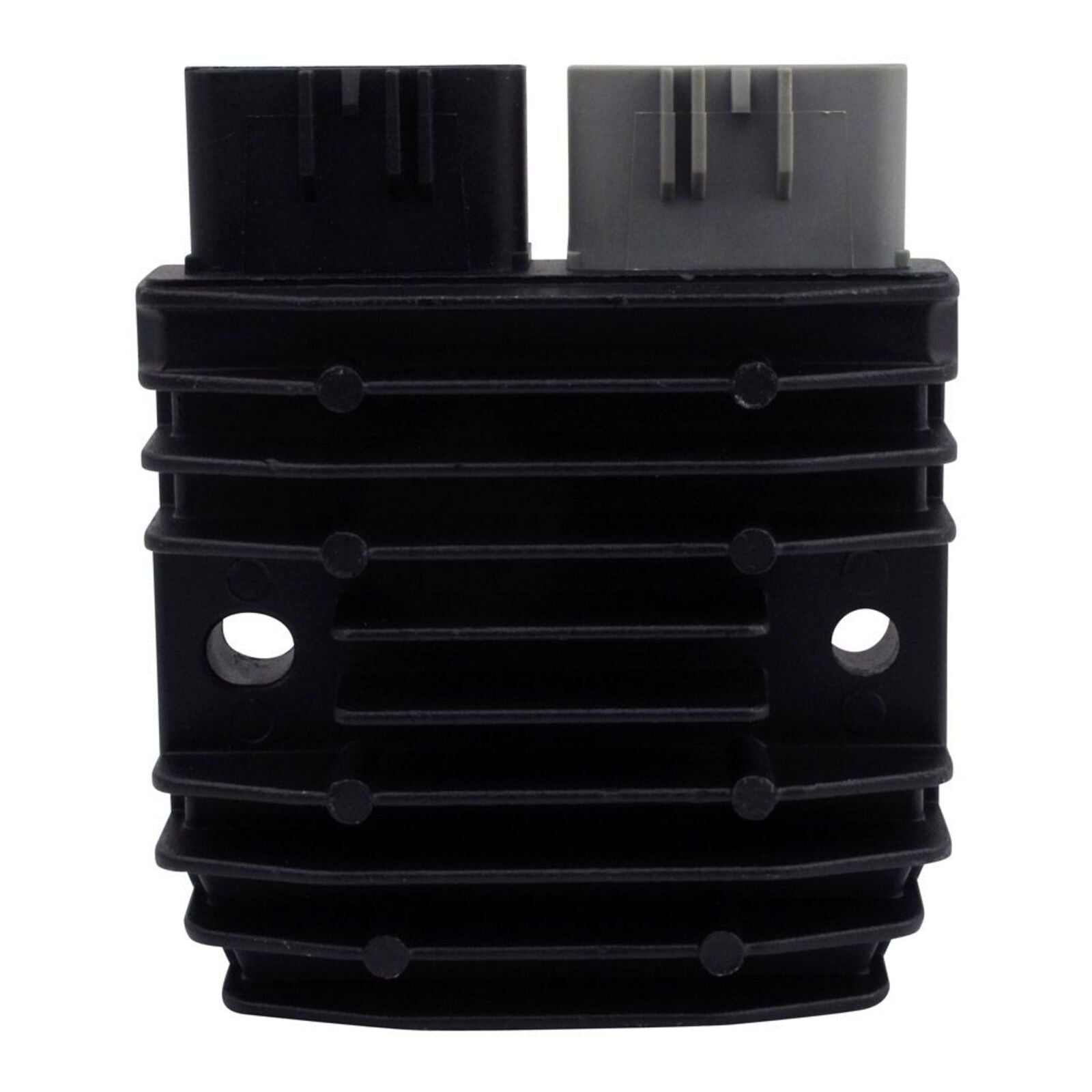

Series Regulator:
Dimensions:
- Width: 84 mm
- Length: 90 mm
- Height: 32 mm

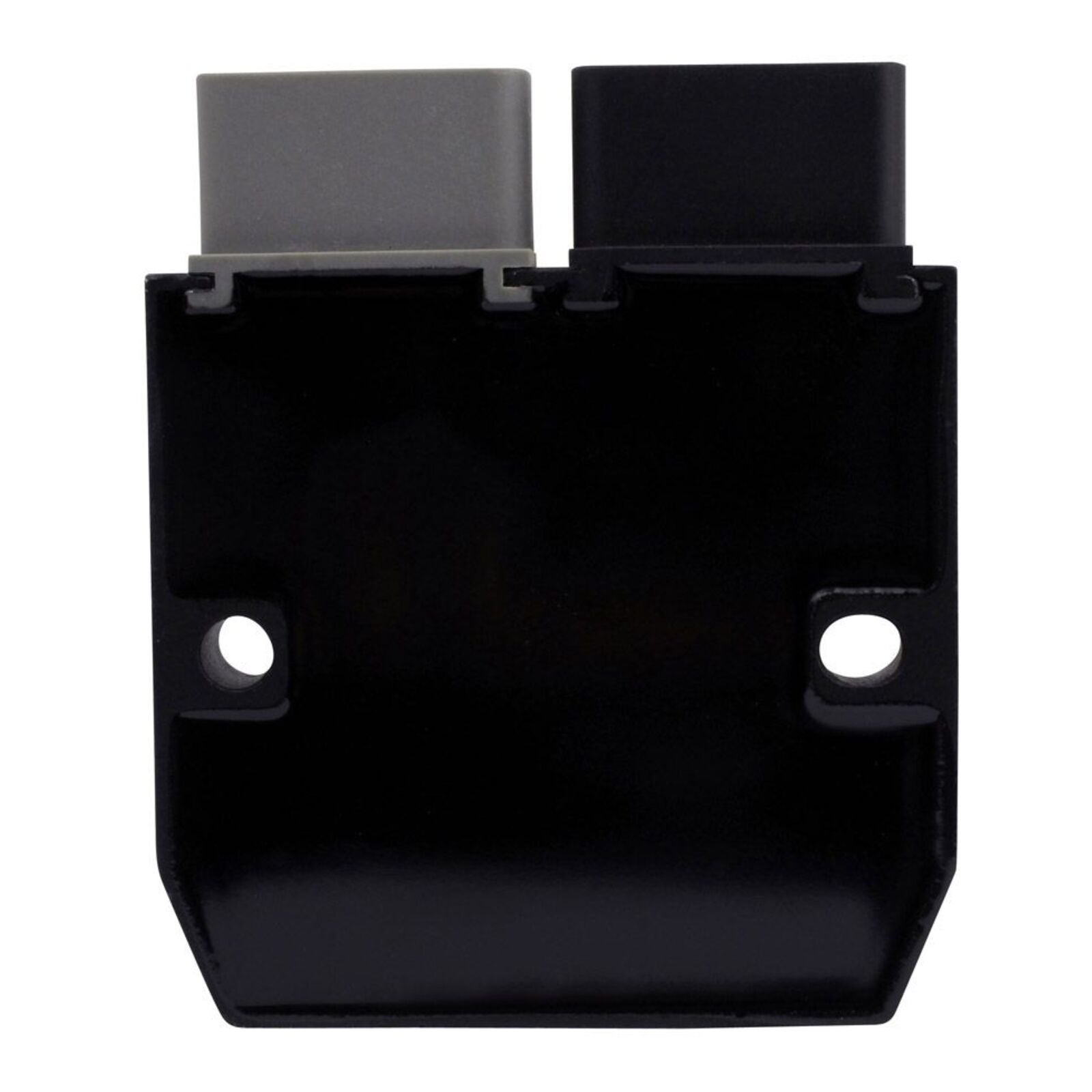

- Fixation holes centre to centre: 69 mm
Other specifications:

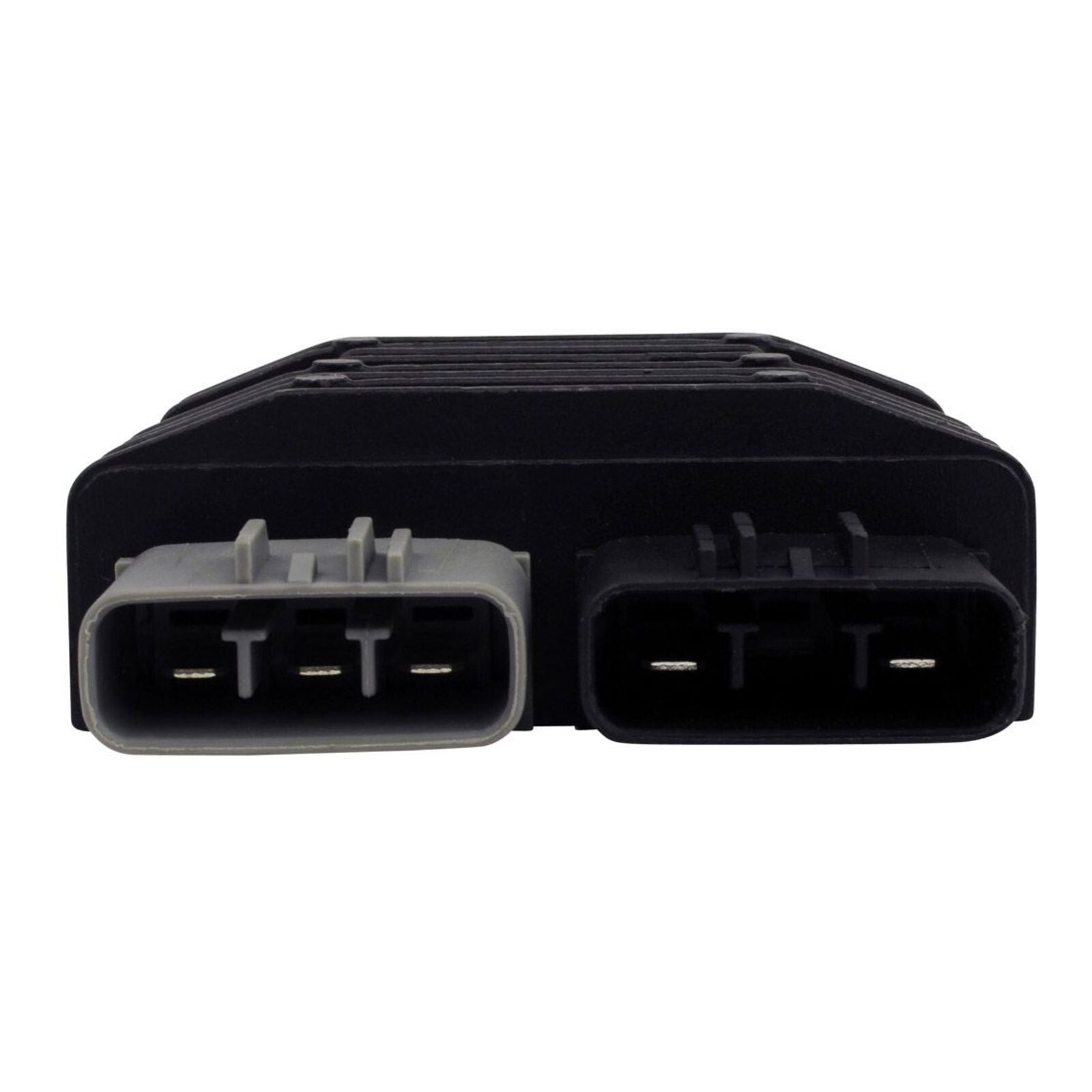

- Number of plugs: 2
- Number of pins: 5
- Minimum Charging Voltage: 14.5 V +/- 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C

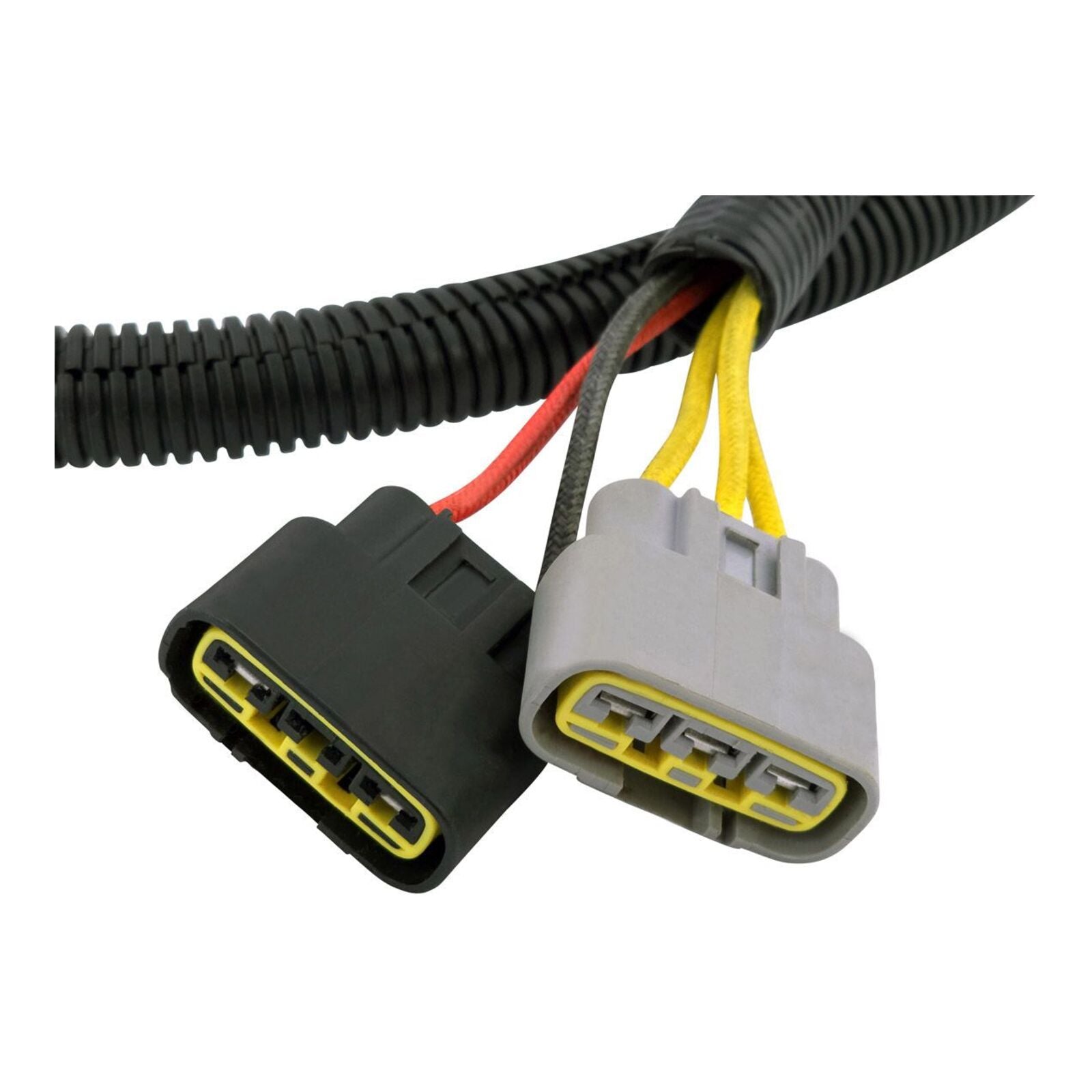

Bypass Harness:

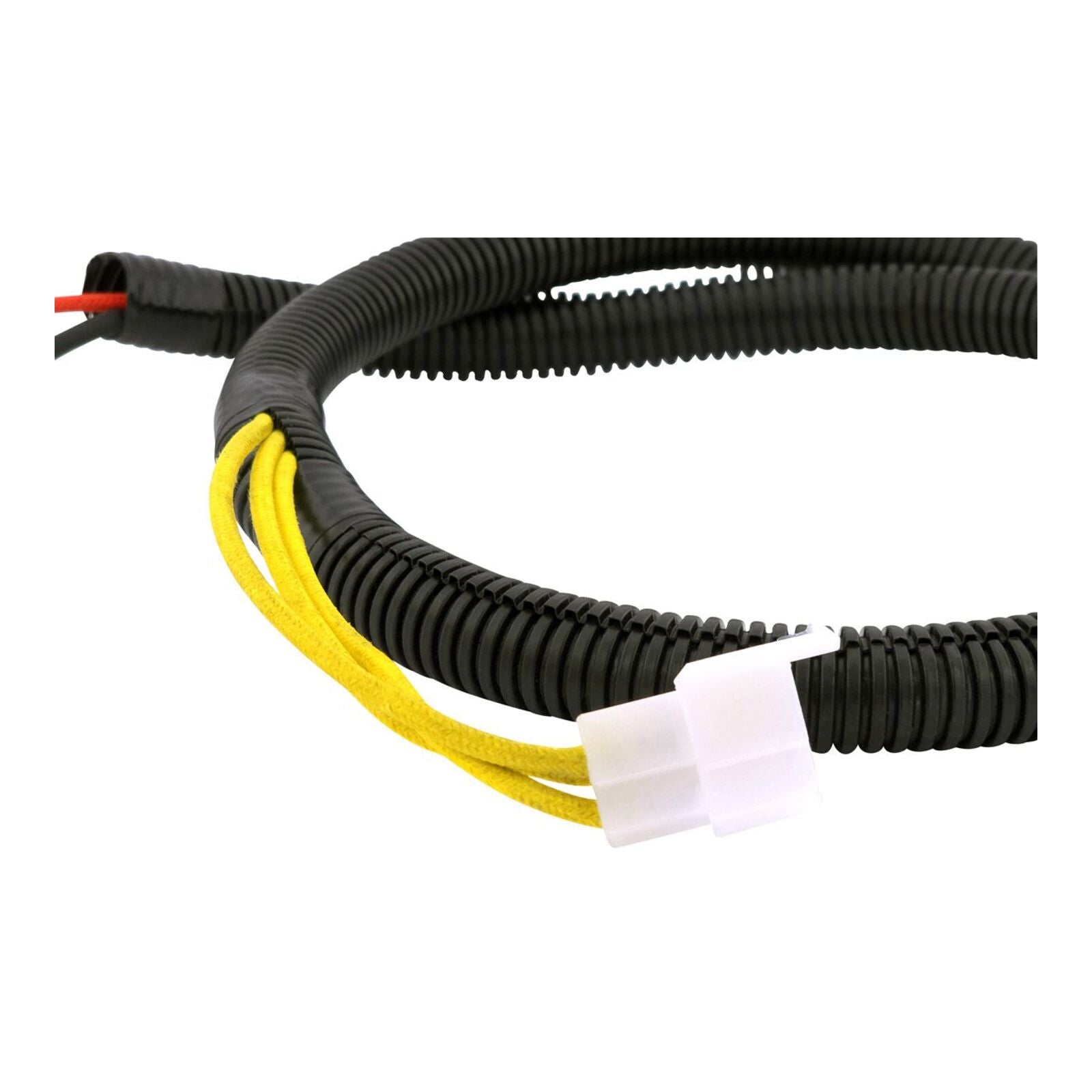

- Stator wires length: 500 mm

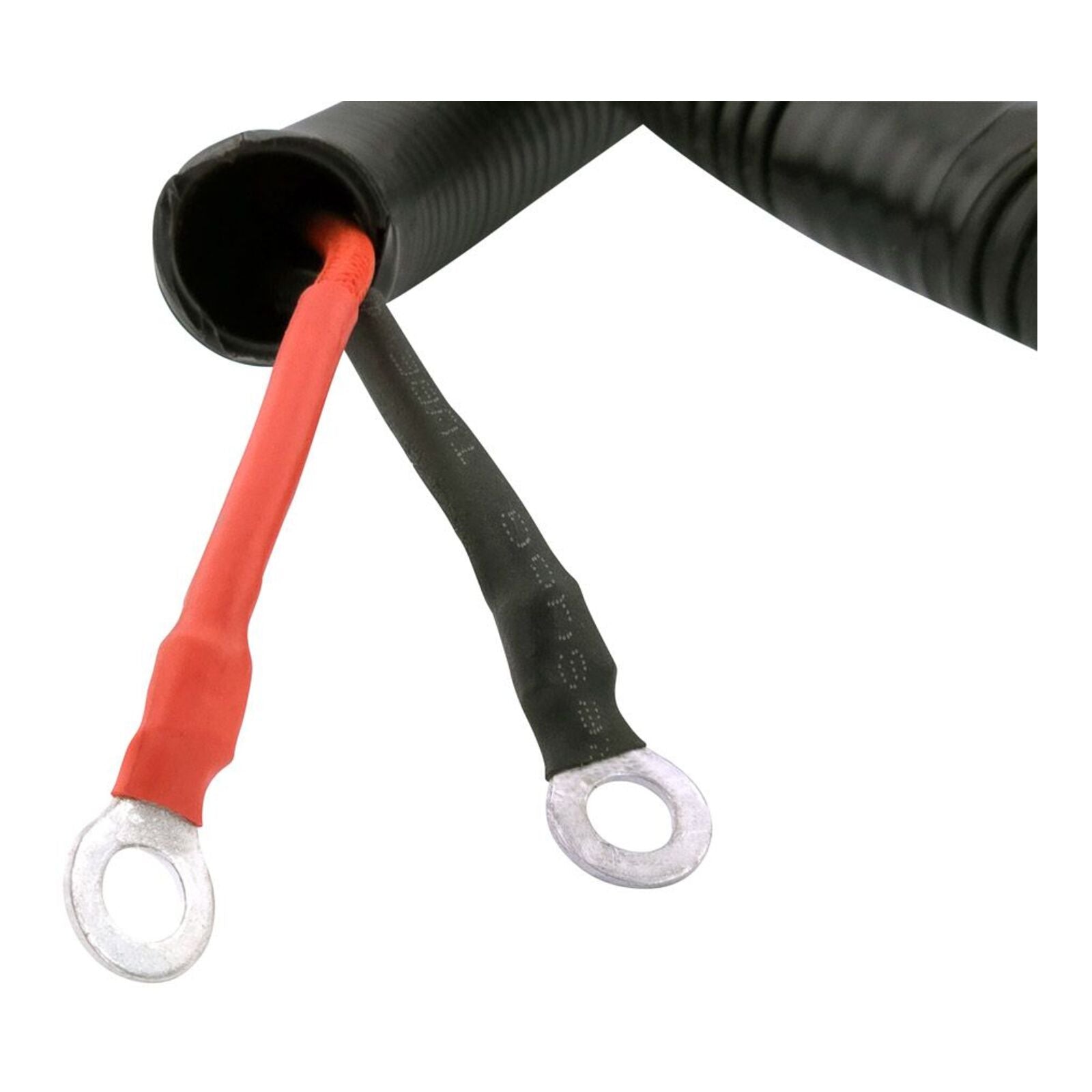

- Battery wires length: 1000 mm
- Number of yellow wires: 3
- Number of red wires: 1
- Number of black wires: 1
- Number of plugs: 3
