RMSTATOR
Performance Regulator Polaris RZR 900 / 1000 '14-'18 (RMS021-107099)
| In Store |
Not in Store
|
| NZ Warehouse |
Out of Stock
|
DESCRIPTION
Brand new MOSFET voltage regulator rectifier.
STOP BURNING the REGULATOR RECTIFIER!
It is time to update or replace the voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection; rather than burn up, it will simply turn off for a while and cool off.
- Direct replacement to the original unit.
- Plug-and-play, direct fit, easy installation.
- The quality exceeds the OEM equipment.
- Improved heat sink and charging capabilities.
- Higher grade of electric components.
- All shipped products are tested.
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

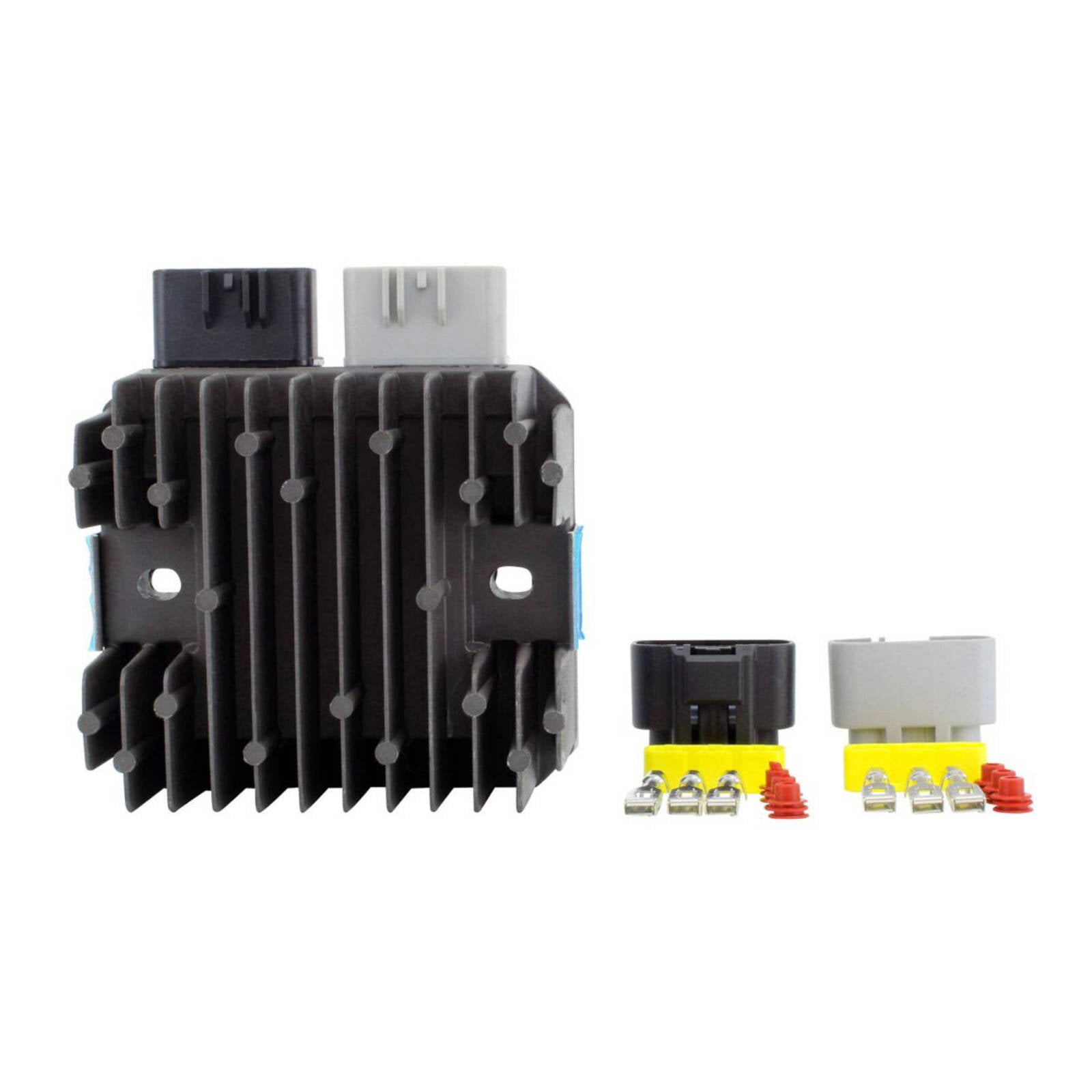

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
Don't settle for an unreliable charging system!
Polaris ATVs/UTVs are hugely popular vehicles. Unfortunately, the voltage regulators on these vehicles are known for very poor reliability.
The experience has shown that the amount of electrical customisation, the vehicle environment and the driving style have a huge impact on the voltage regulator's ability to operate reliably.
With this in mind, we have designed a new voltage regulator with 65 A-rated components to support more aggressive levels of stress the owner puts on the vehicle's electrical system, either by adding accessories or by driving the vehicle to the edge of failure.
Why use MOSFET Enhanced technology?
- Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
- Saves gas: Less load on the stator, less work, less fuel is used and you save.
- Regulated energy: The power charging the battery is steadier and smooth.
- Extended battery life: Extends the battery’s life and cold cranking capacity.
- More engine power: Removes stator load resulting in more engine power.
- Optimised power: Optimise power delivery by switching the stator coils on or off.
How does a MOSFET regulator rectifier work?
With enhanced technology design, this product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Before installing the new voltage regulator rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Width: 110 mm
- Length: 121 mm
- Height: 41 mm
- Fixation holes centre to centre: 82 mm
Other specifications:

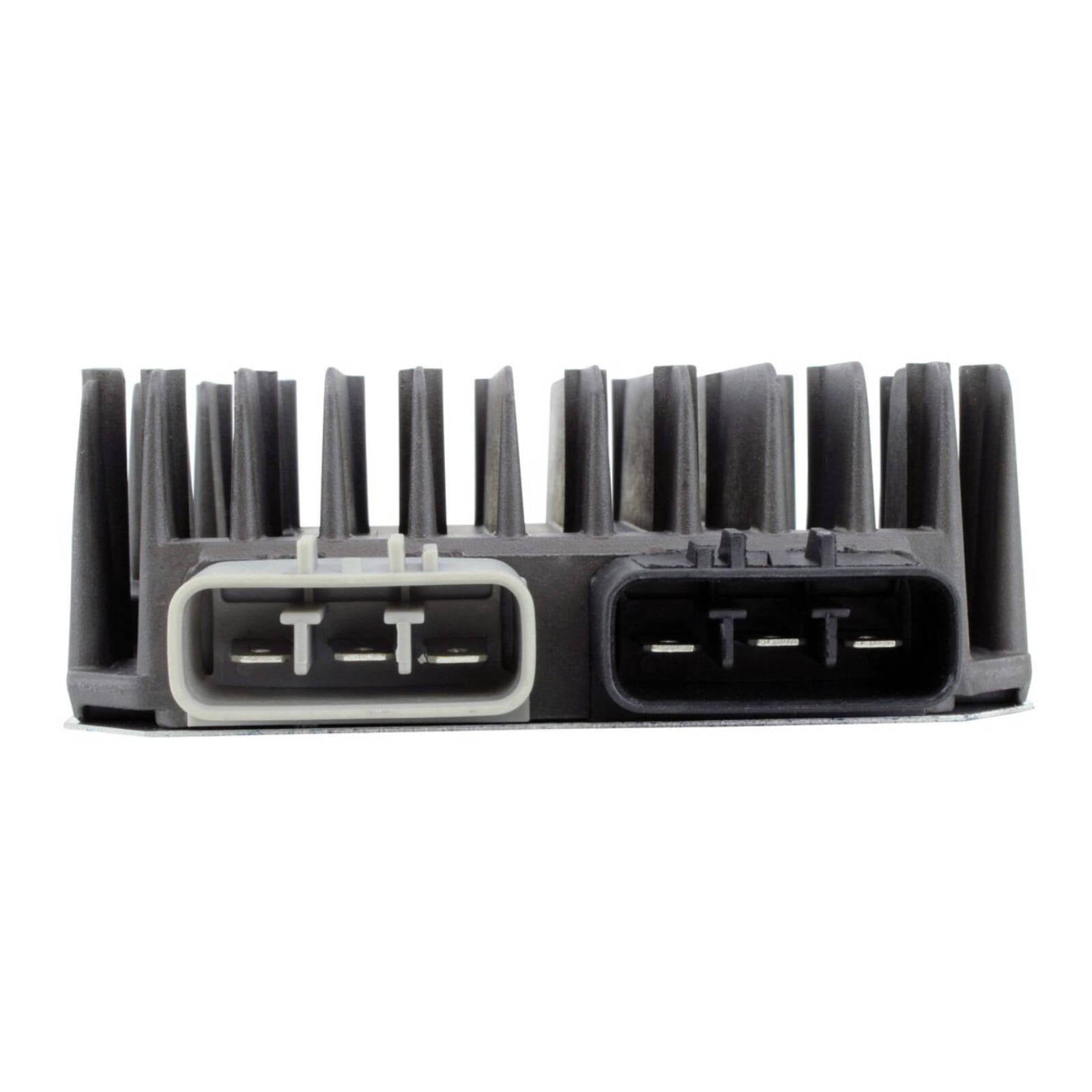

- Number of pins: 5
- Number of plugs: 2
- Minimum Charging Voltage: 14.5 V +/- 0.5 V
- Maximum Charging Current: 65 A / 660 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C
