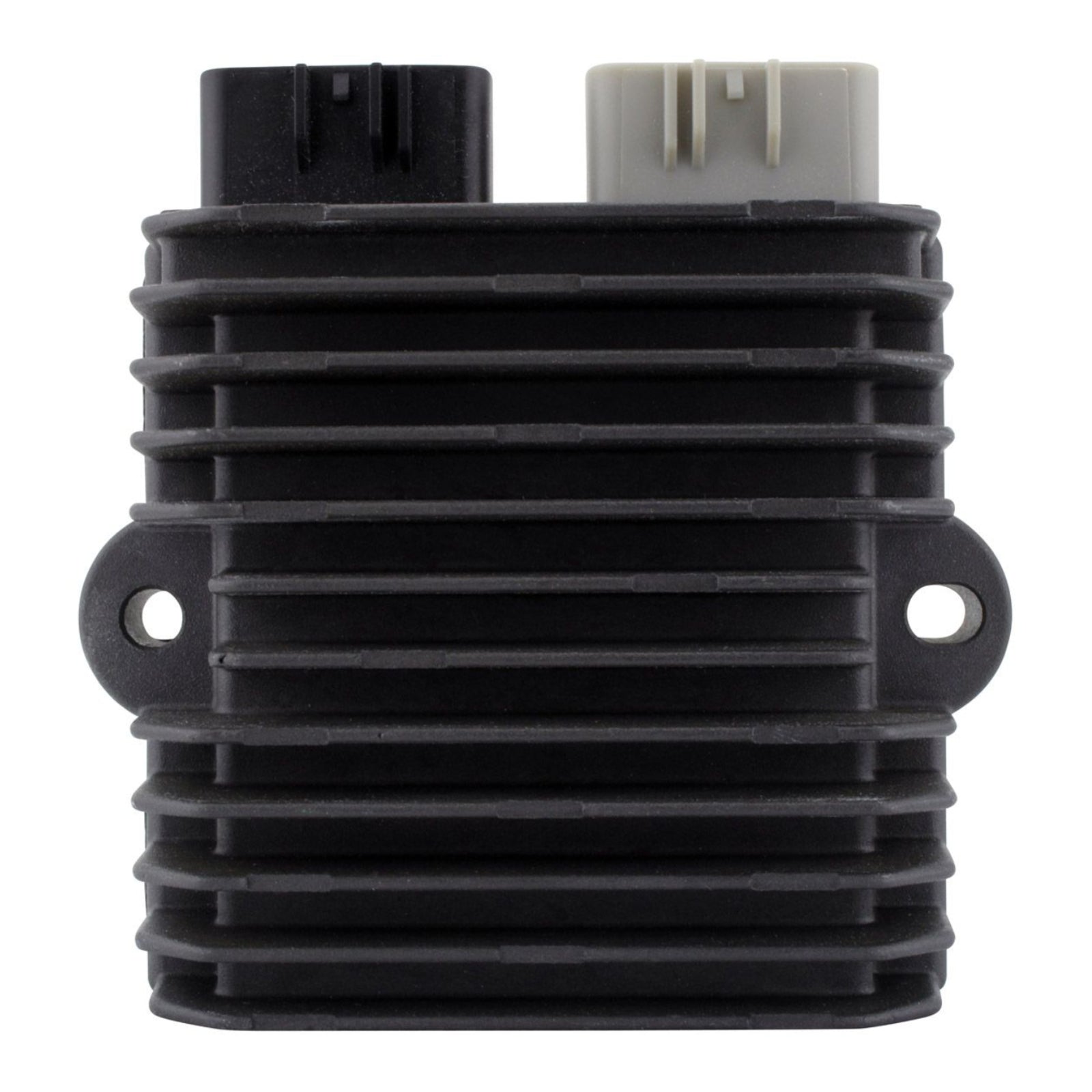

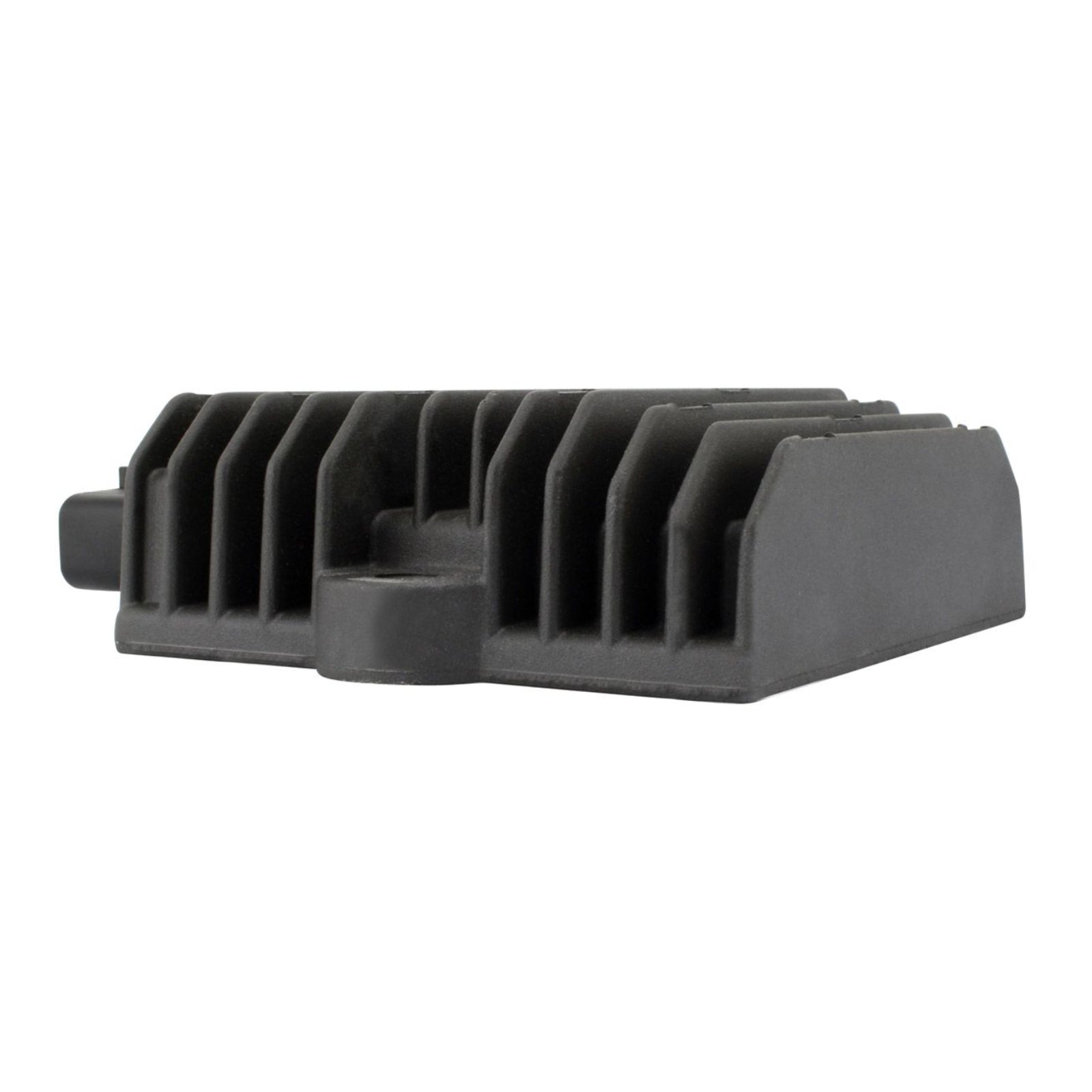

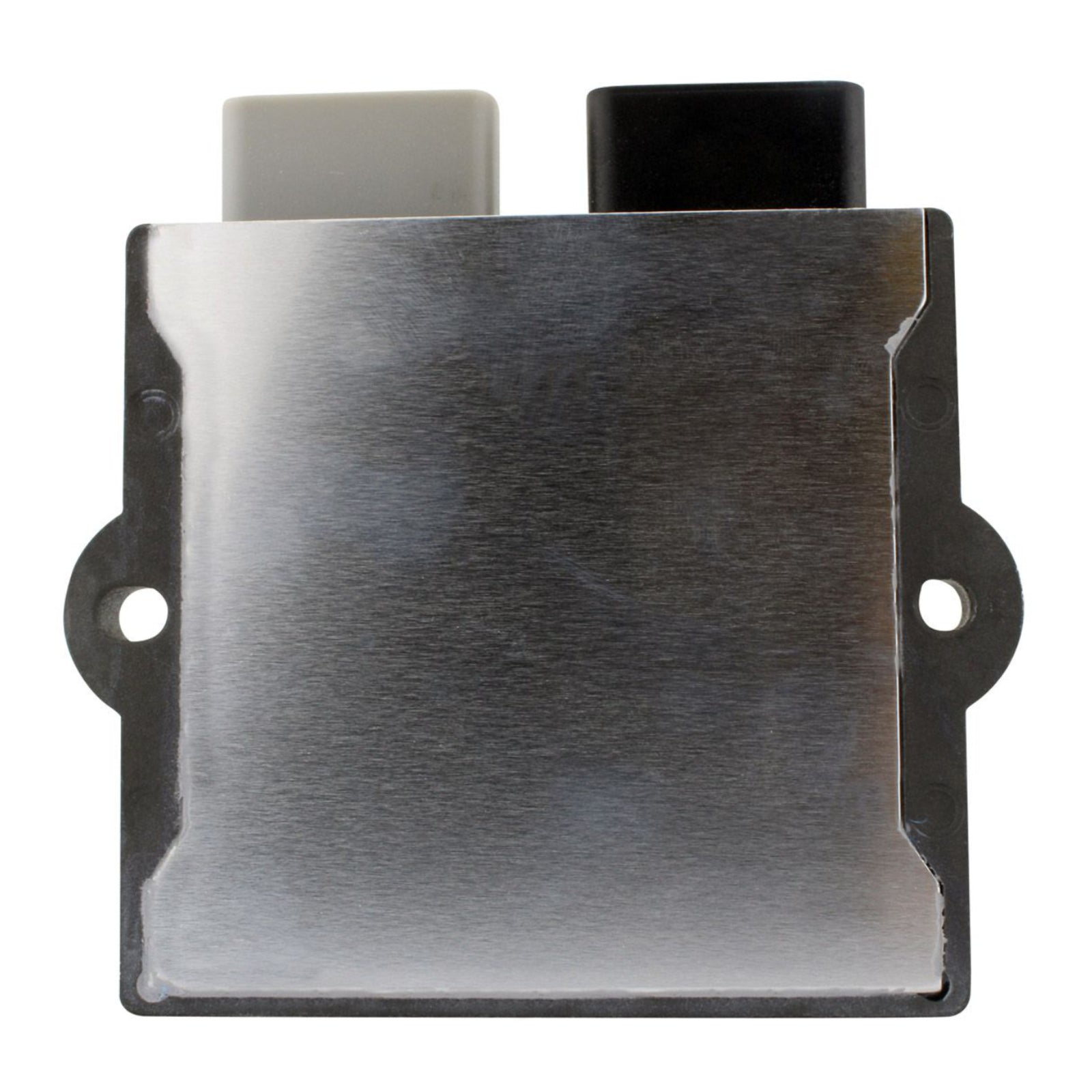

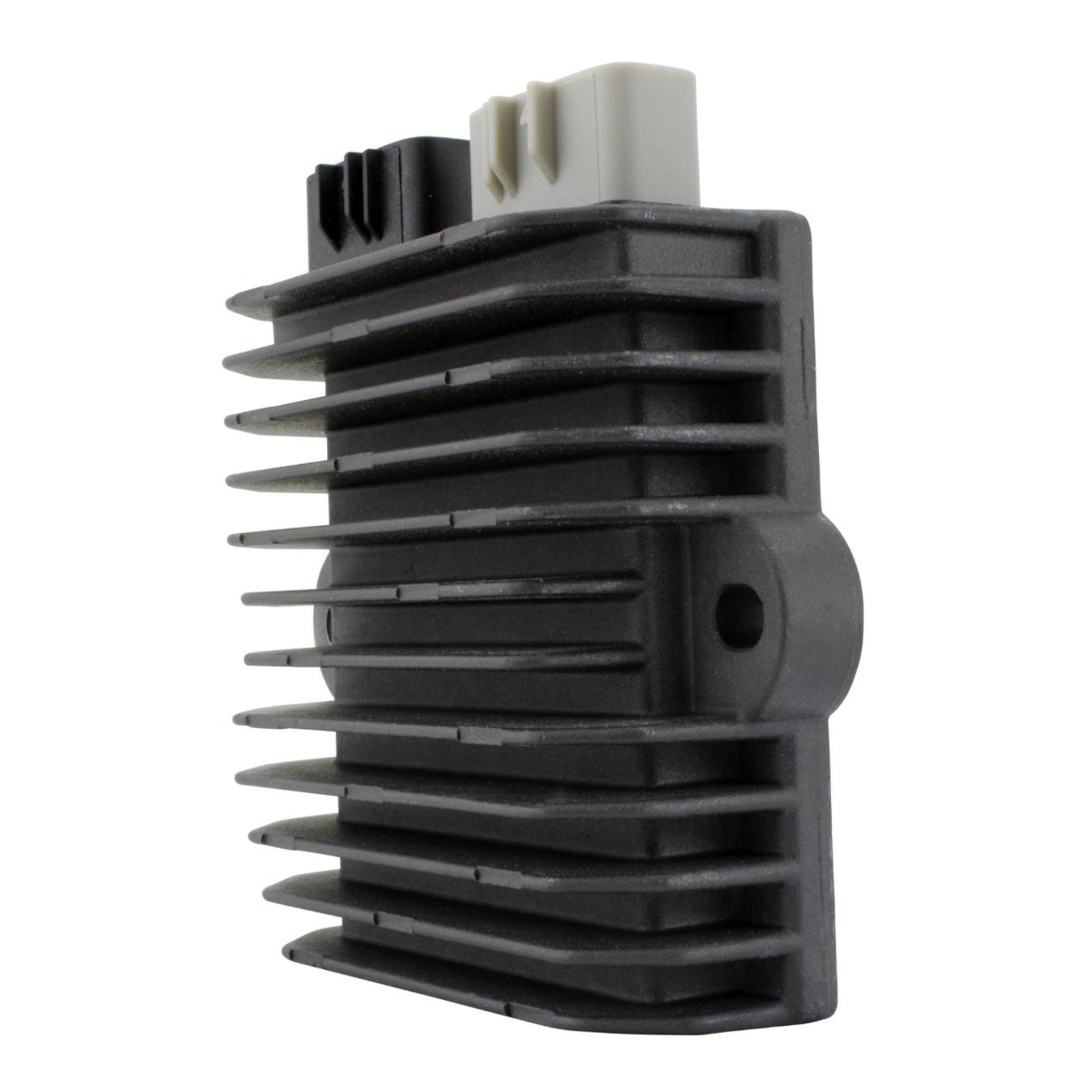

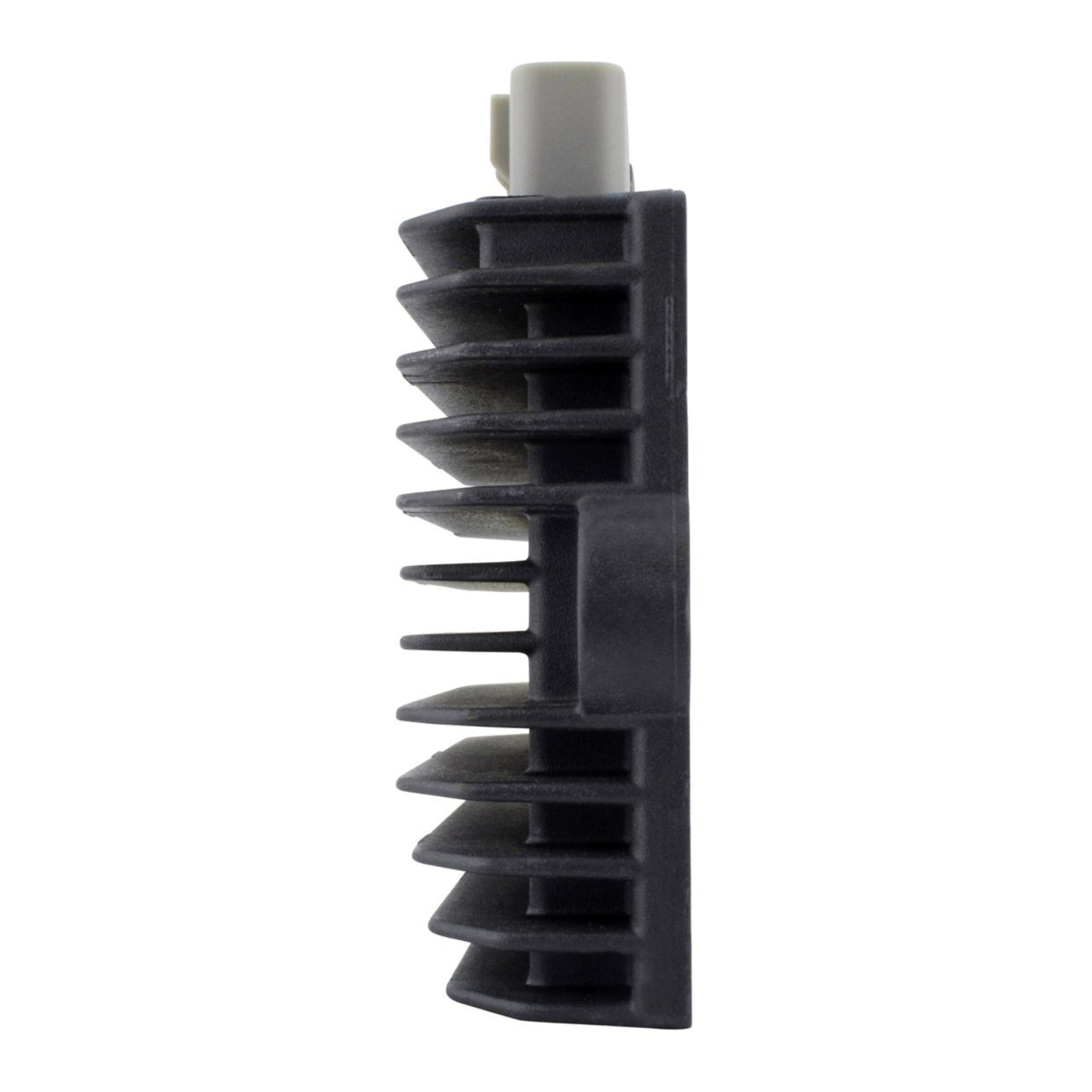

Voltage Regulator for Suzuki V-Strom DL 1000 '14-'21
Couldn't load pickup availability
DESCRIPTION
BENEFITS OF SERIES VOLTAGE REGULATORS
SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifier and way much cooler than OEM parts.
This series voltage regulator is an aftermarket replacement to the renowned SH847 voltage regulator.
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used, extending its lifetime.
The regulator is easier to mount because it is smaller than the OEM one.
ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY
RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.
This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.
INSTALL LIKE A PRO

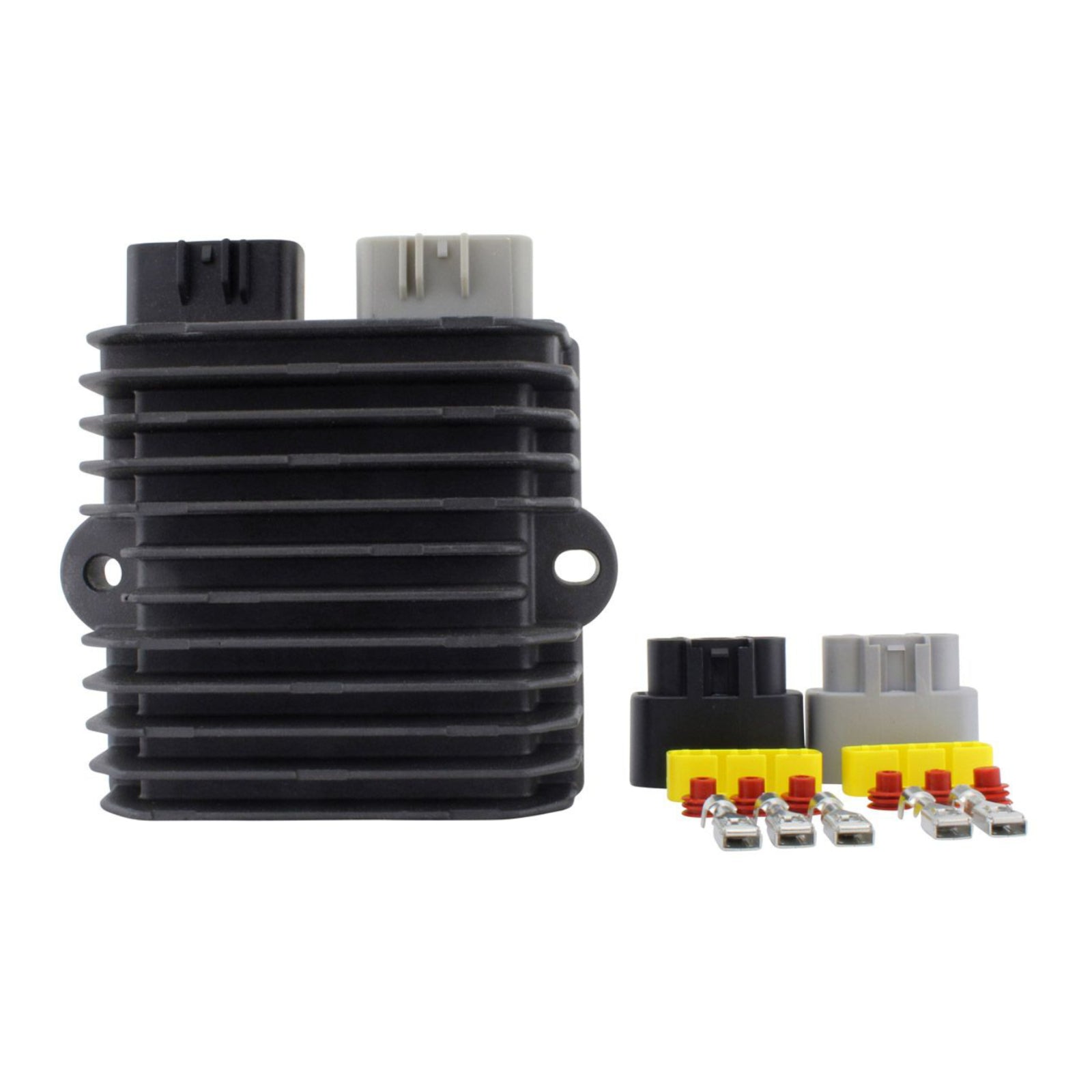

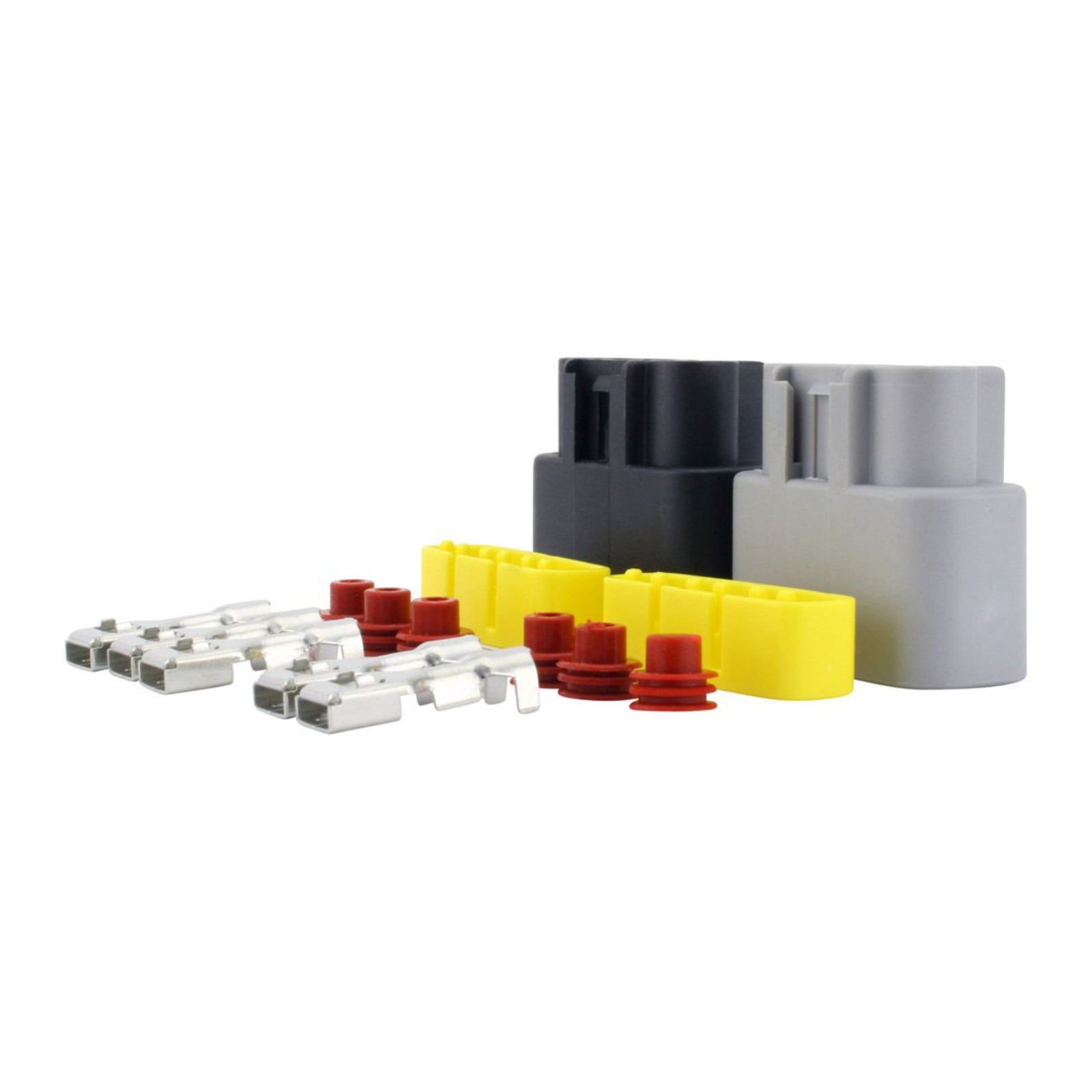

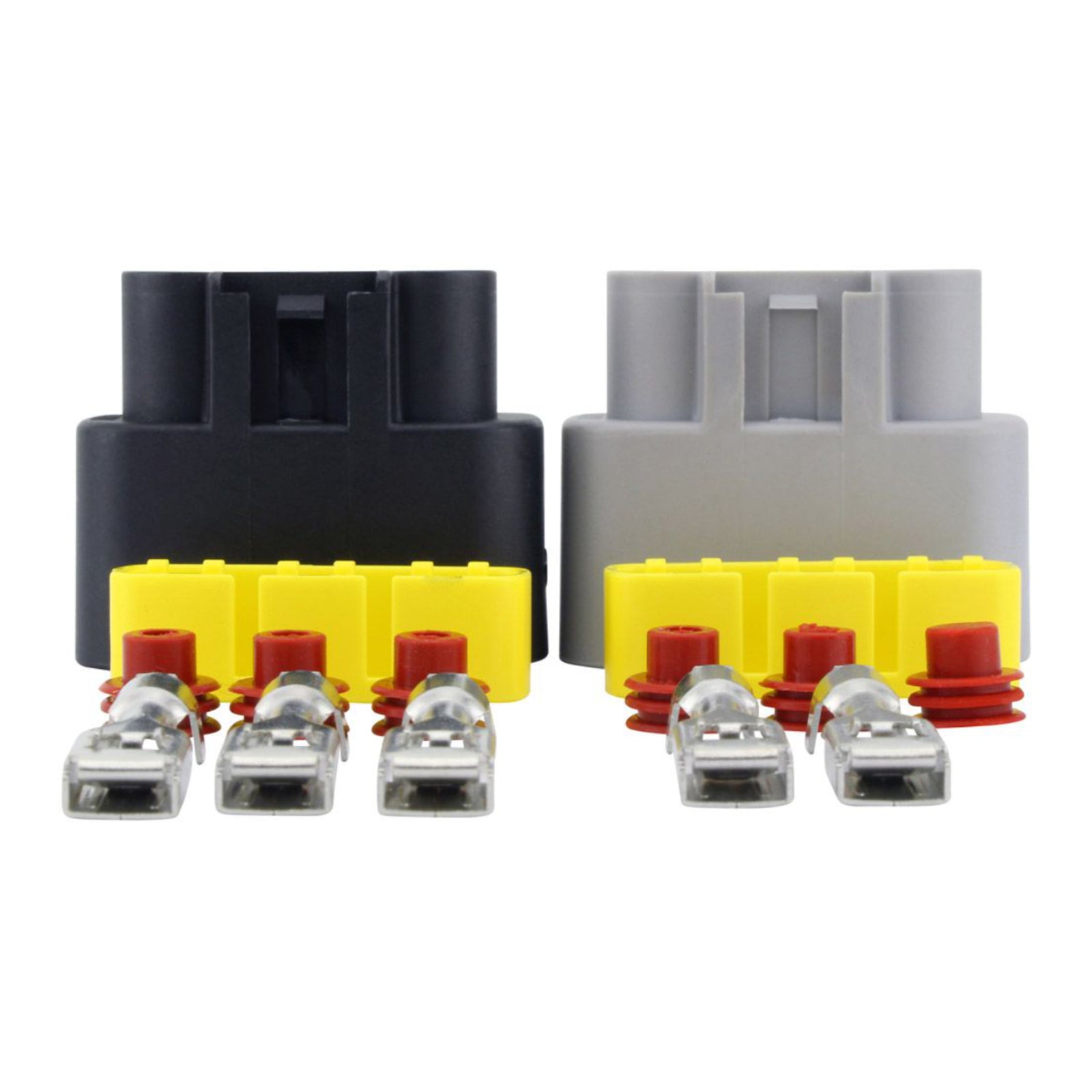

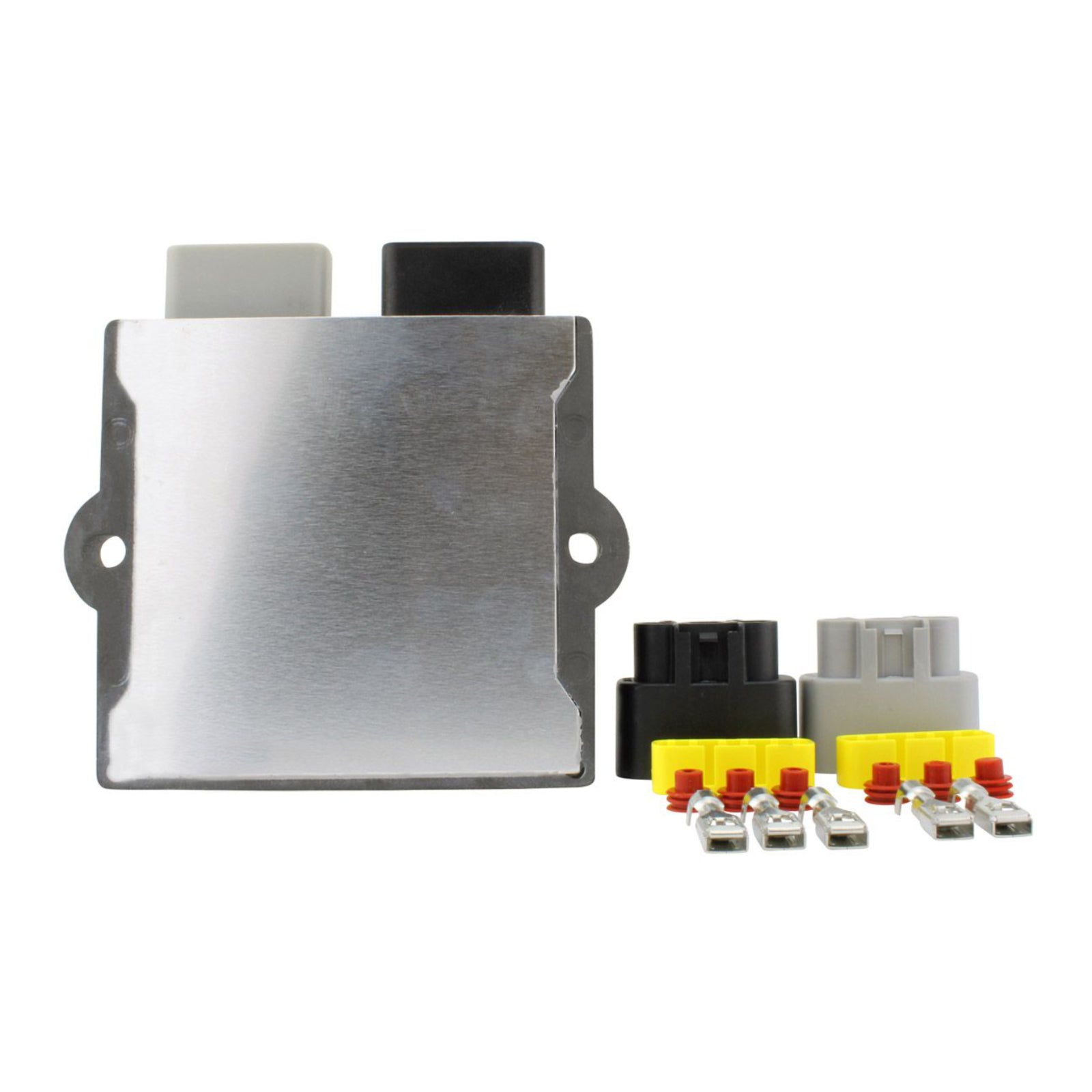

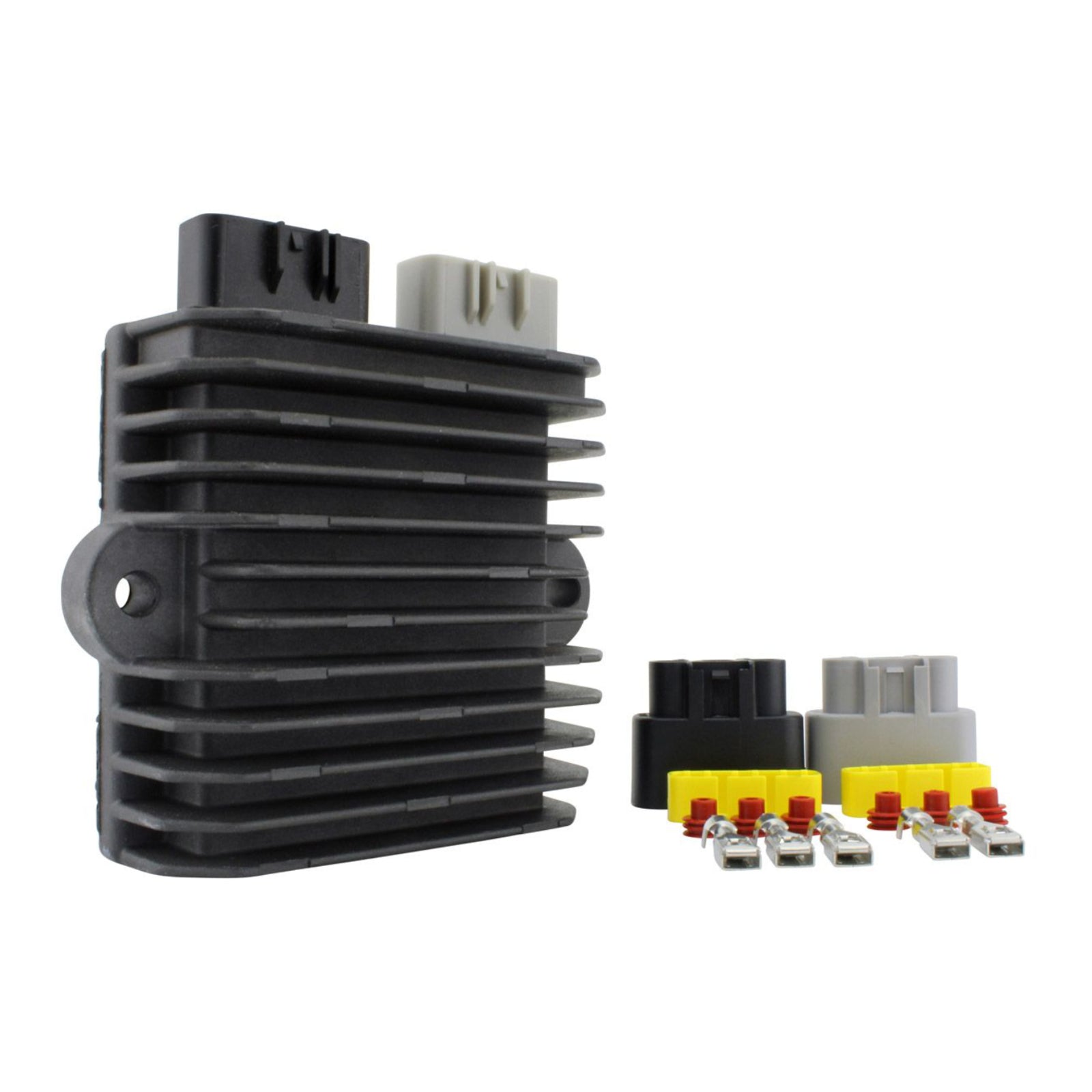

We include the opposite connector (main harness side) as we know these are often melted/corroded/defective. Defective connectors are a major cause for repetitive electrical issues.
Specifications:
Dimensions:
Width: 119 mm
Length: 100 mm
Height: 38 mm
Fixation holes centre to centre: 100 mm
Other specifications:

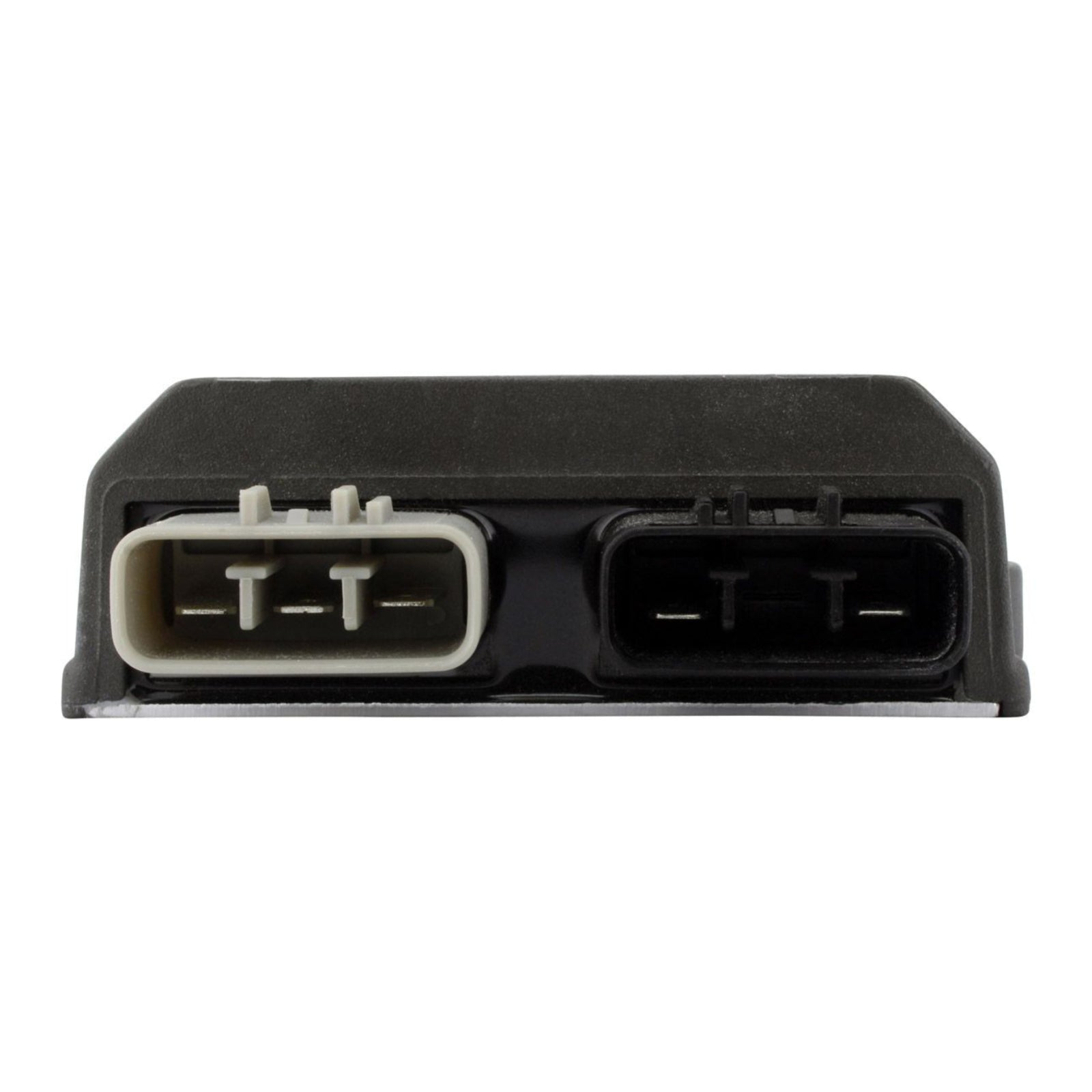

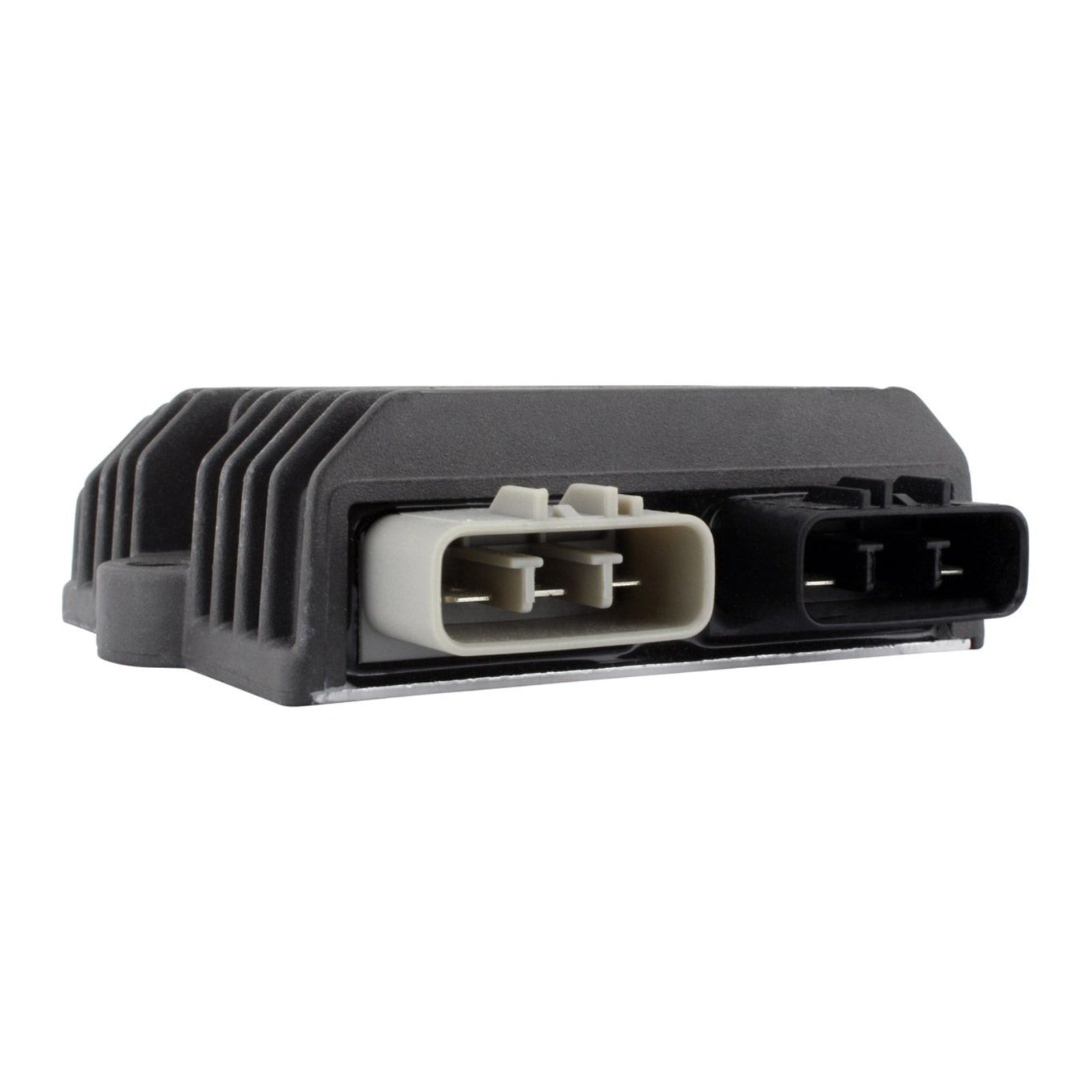

Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
