RMSTATOR

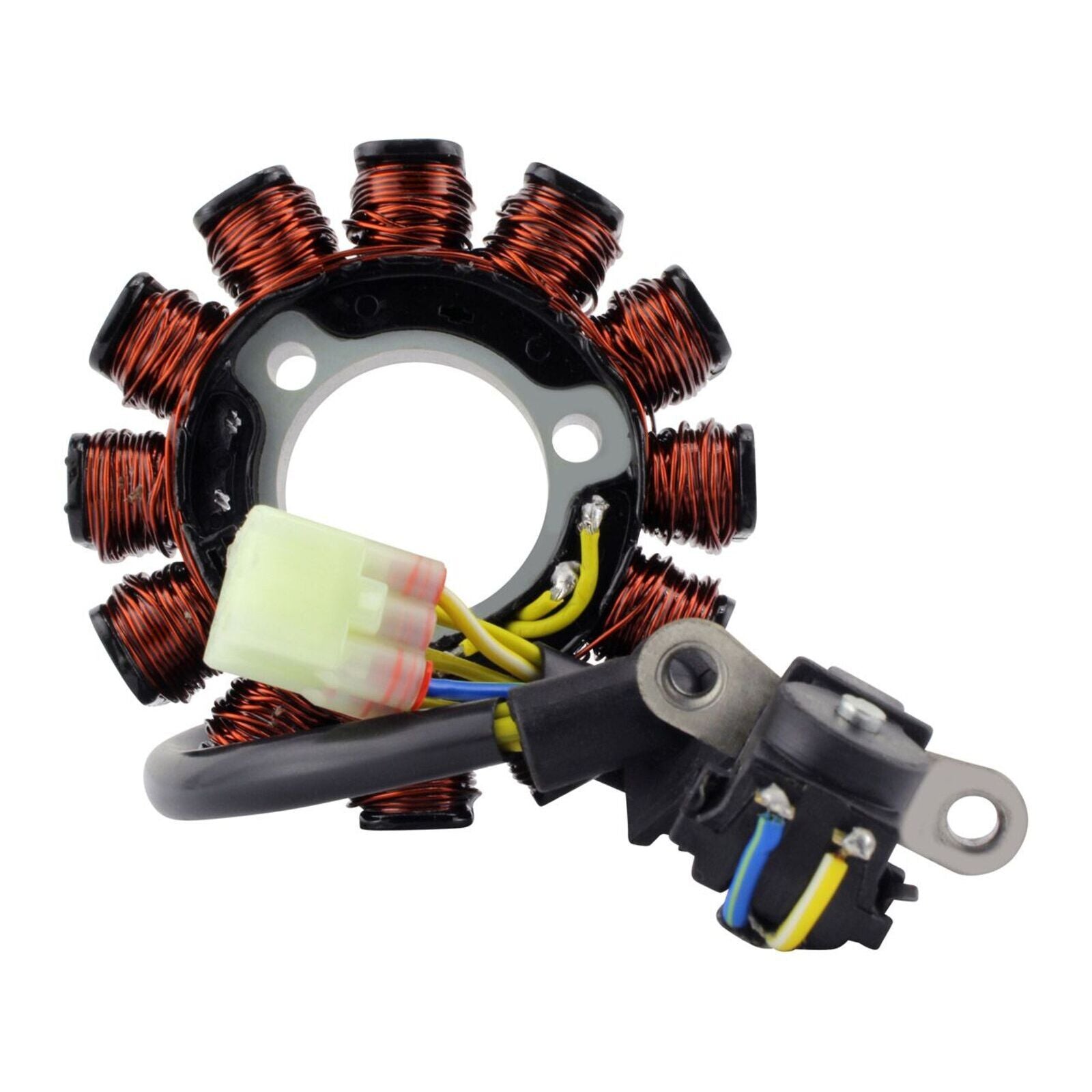

Stator Honda CRF450R/RX '17-'18 (RMS010-107646)
| In Store |
Not in Store
|
| NZ Warehouse |
At Warehouse
|
![Stator Assorted KTM Models '17-'23 [Refer to Fitments] (RMS010-107849)](http://motozone.co.nz/cdn/shop/files/RMS010107849.jpg?v=1780132393&width=1420)
DESCRIPTION
Brand new aftermarket stator.
- Direct replacement to the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pickup pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before installing the new stator:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
The stator may use a different wire colThe code than the original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible, no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Interior diameter: 54 mm
- Exterior diameter: 127 mm
- Thickness: 19 mm
- Length of wires stator to grommet: 195 mm
- Length of wires grommet to plug #1: 250 mm
- Length of wires grommet to plug #2: 270 mm
- Length of pickup coil's wire to grommet: 130 mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 18
- Wire to wire resistance:
- Alternator: Black to Black = 0.6 ohms +/-20%
- Alternator: to ground = O.L
- Pickup: Green to Blue = 196 ohms +/-20%
